DOCKING THE COMPUTER
1. Make sure the dock power switch is
in the OFF position and the LED is not
lit.
2. Push the Latch Button to open the
latch if the dock is in the closed
position.
3. Insert the front of the CF-53
computer under the front hooks on the
dock. Look at the handle to make
sure the front of the computer is
centered on the front hooks.
4. Lower the back of the computer
down onto the guide pins and the
docking connector.
5. Lightly press down on the back of
the computer to ensure if is fully
seated.
6. Close the latch to engage the rear
hooks (and Dual-RF if applicable) into
the back of the computer to hold it in
place.
7. Turn ON the power switch to allow
vehicle power to the computer.

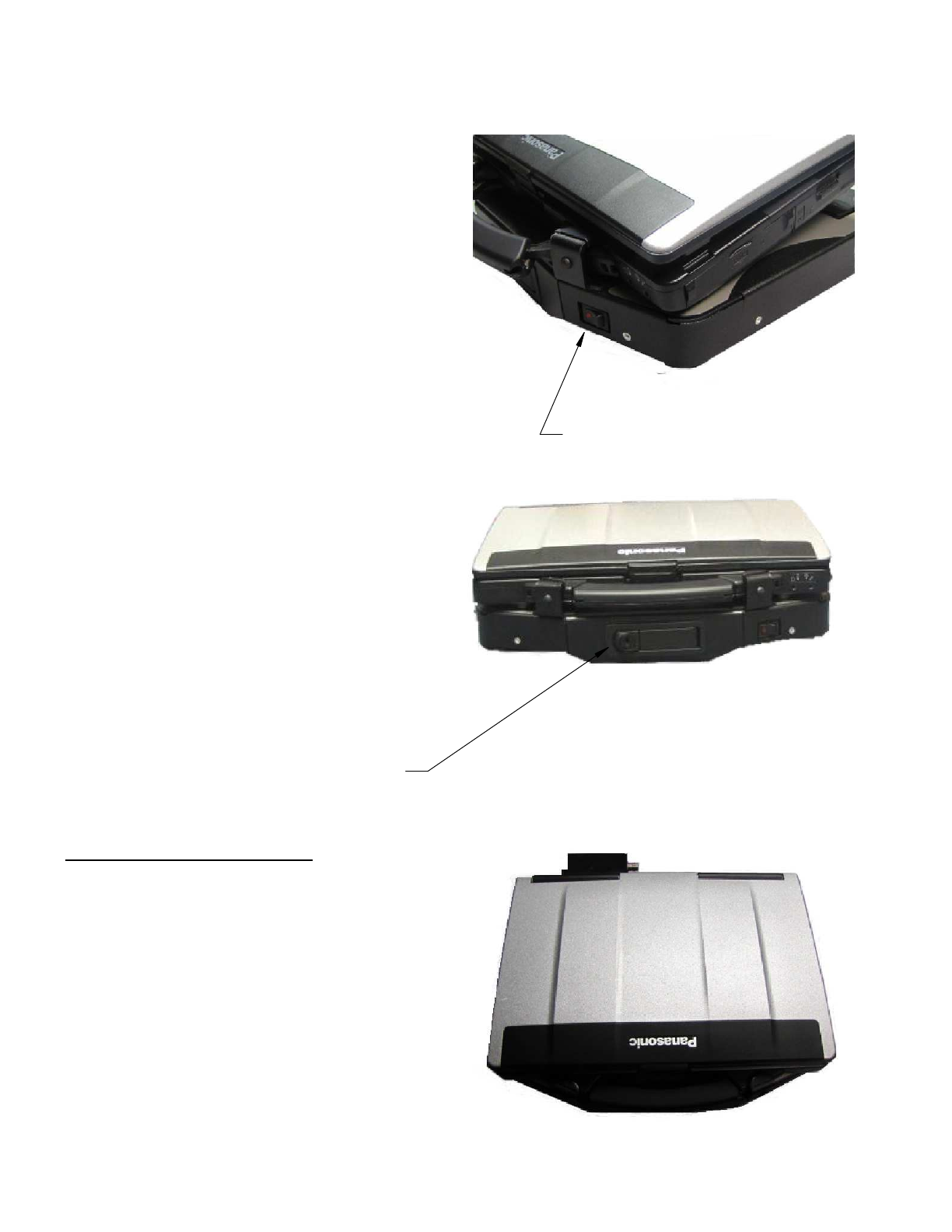

Dock Power Switch
Latch Button
TO UNDOCK THE COMPUTER
1. Turn off the Dock Power Switch.
2. Press the Latch Button. The front
latch is spring loaded and will
automatically open. The rear hooks are
also spring loaded and will retract from
the computer.
3. Lift the back of the computer off the
guide pins and docking connector.
4. Pull the front of the computer out
from under the front hooks.
