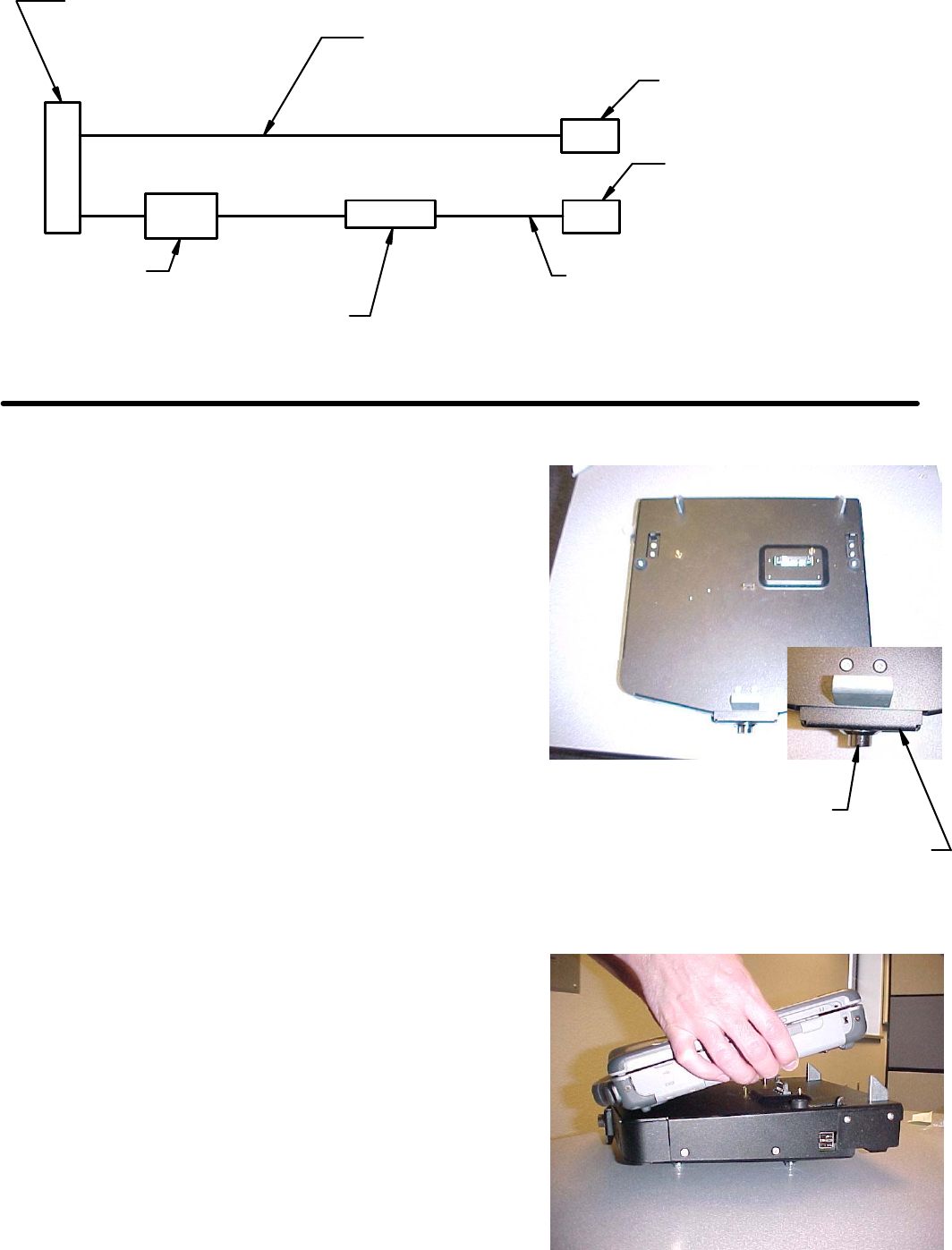

14 AWG (red wire) J1128 TYPE GPT
Fuse
14 AWG (black wire) J1128 TYPE GPT
Panduit #BSN14-C
Butt Splice connects to
black lead from dock
Panduit #BSN14-C
Butt Splice connects to
red lead from dock
10"
Vehicle Battery
+
-
Ground to Vehicle Chassis
Figure 2
Inserting the computer
into the vehicle dock
1. Make sure the latch handle is in the
"Unlatched" position. If you received the
dock in the latched position, you will need
to unlatch it before inserting the computer.
To unlatch the dock, press the latch button
and pull forward on the latch handle. The
latch handle should move forward about
1/4". (See Figure 3)
2. Insert the computer: (See Figure 4)
a. Align the center notch in the
computer with the front retaining
hook.
b. Lower the back of the computer
down onto the locating pins and
docking connector. Press
downward slightly to make sure
the computer is resting on the
bumpers mounted on the deck.
Figure 3
Figure 4
Connect in-line fuse holder to lead
wire using Panduit #BSN14-C
Butt Splice connectors
Page 4 of 6
Latch Handle in
"Unlatched" position
Latch button
