1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device
on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the device.
4. Remove the battery (see
Battery on page 32).
5. If your device has WWAN capability, remove the SIM (see
SIM on page 33).
Remove the keyboard:

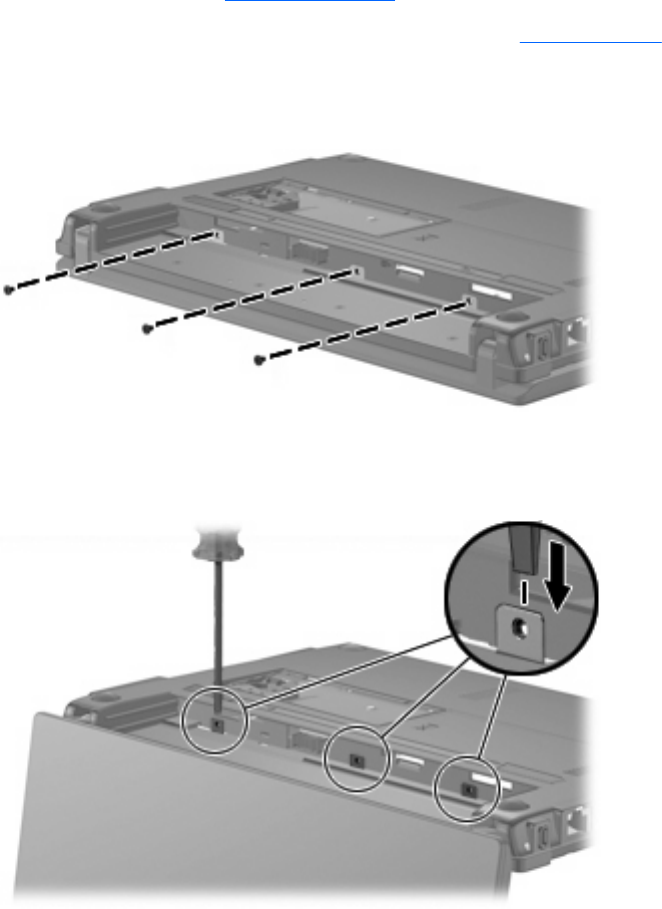

1. Remove the 3 Phillips PM2.0×3.0 screws that secure the keyboard to the device.
2. Open the display 90 degrees.
3. Use a tool to push the screw tabs directly down to release the keyboard.
4. Turn the device right-side up, and then lift up on the top and left edges (1) of the keyboard until the
keyboard releases completely.
Component replacement procedures 37
