Removing the Monitor Pedestal Base
You can remove the monitor panel from the pedestal base to install the panel on a wall, a swing arm,
or other mounting fixture.
CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and the
power and signal cables are both disconnected.
1. Disconnect and remove the signal and power cables from the back of the monitor.
2. Lay the monitor face down on a flat surface covered by a dry, clean cloth.
3. Remove the four screws on the back of the monitor that connect the monitor panel to the pedestal
base.

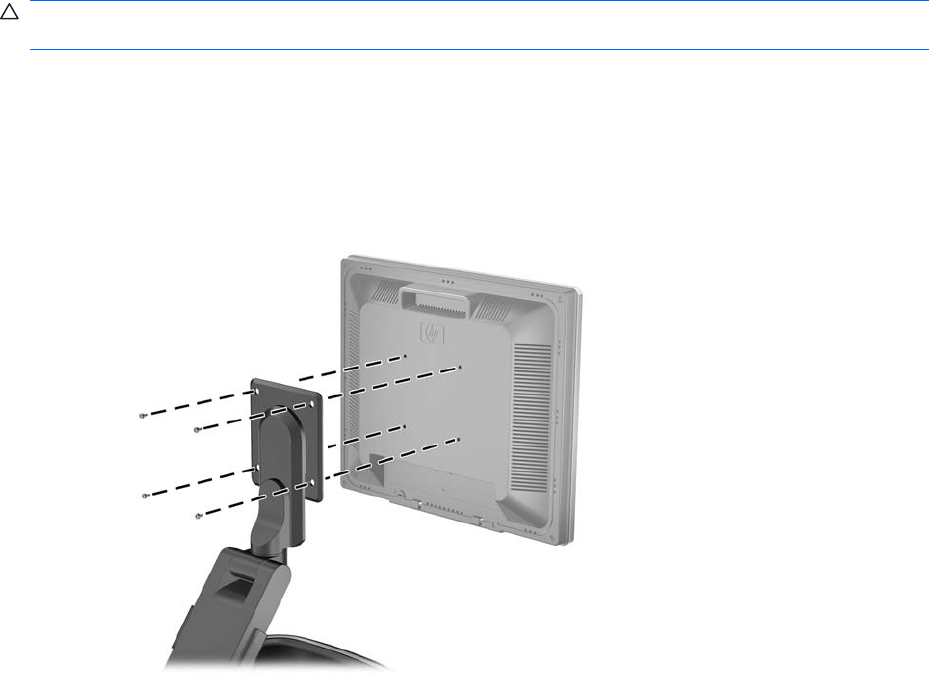

Figure 3-12 Removing the Pedestal Base
4. Lift up on the pedestal base to remove it from the monitor display head.
ENWW Removing the Monitor Pedestal Base 13
