Setting Up the Monitor
3-2 User’s Guide
3. Lift the monitor to an upright position and place on a flat, stable surface.

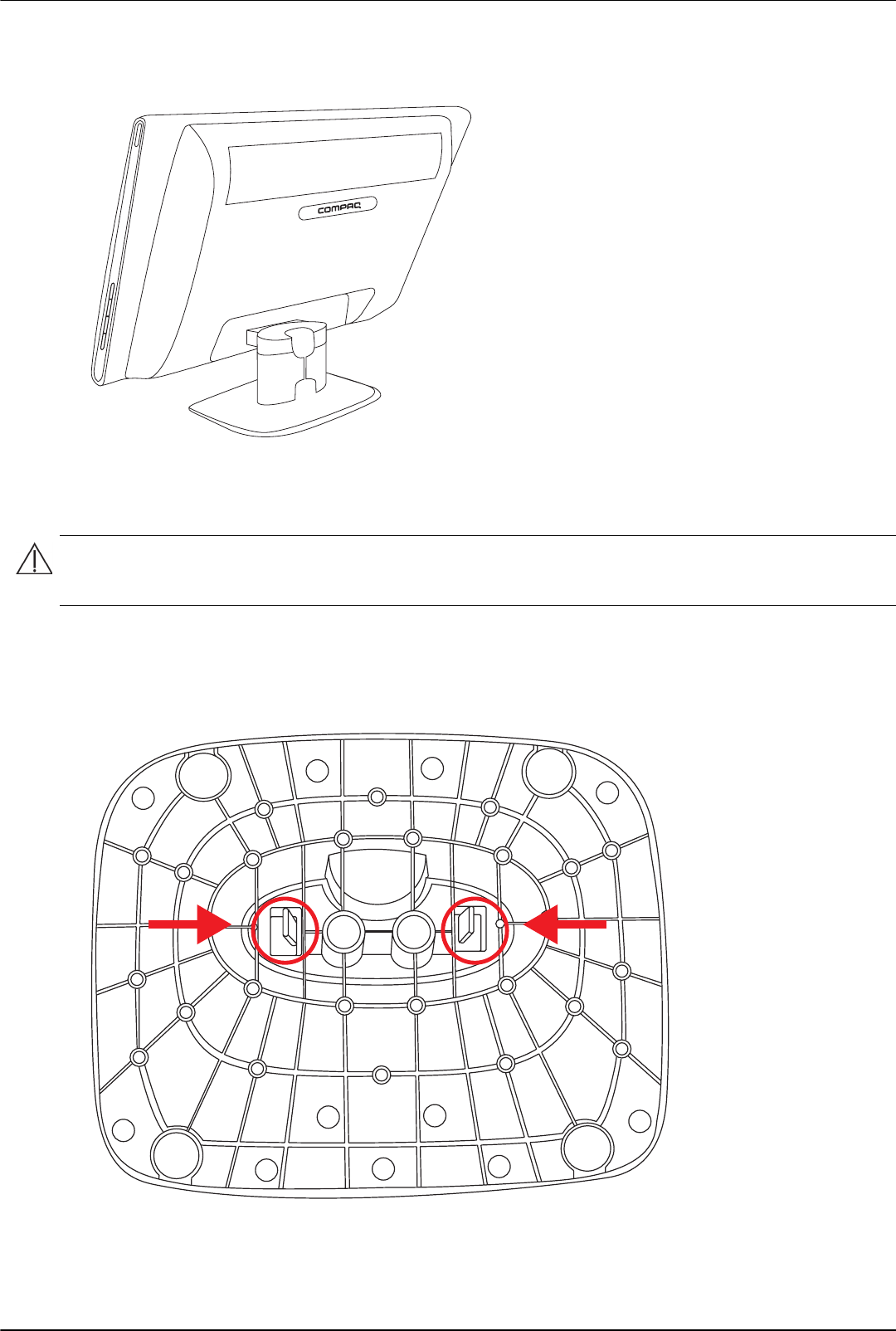

Monitor in upright position
Preparing the monitor for wall-mounting
1. Disconnect the power cable and any other cables from the monitor.
2. Place the monitor face down on a flat, protected surface.
3. Release the base from the column by squeezing the two tabs toward each other. Pull the base away from the
column as you do so.
Bottom view of monitor base showing release tabs (circled)
WARNING: To reduce the risk of personal injury or of damage to the equipment, check that the wall-mounting
fixture is adequately installed and secured before attaching the monitor. Refer to the instructions supplied with the
wall-mounting fixture and check that it is capable of supporting the monitor.
