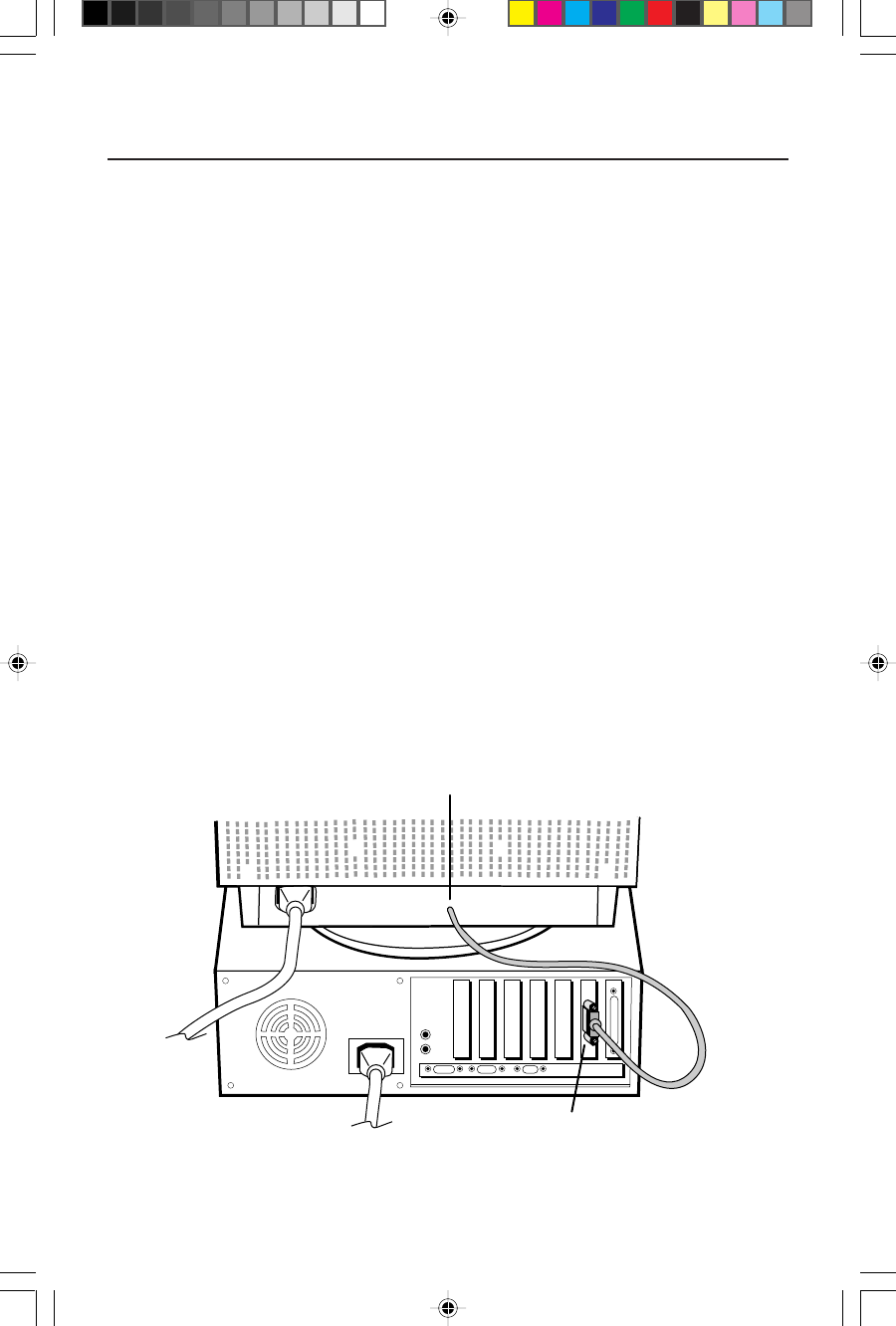

Figure A.1
3
15-pin mini D-SUB
Captive Signal Cable
To attach the MultiSync
®
A Series monitor to your system, follow
these instructions:
1. Turn off the power to your computer.
2. If necessary, install the display card into your system. For more information,
refer to the display card manual.
3. For the PC: Connect the 15-pin mini D-SUB of the captive signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For the Mac: Connect the MultiSync A500+
™
or MultiSync A700+
™
Macintosh
cable adapter (not included) to the monitor connector on the Macintosh
(Figure B.1). Attach the 15-pin mini D-SUB end of the captive signal cable to
the MultiSync A500+ or MultiSync A700+ Macintosh cable adapter on the
computer (Figure B.1). Tighten all screws.
NOTE: To obtain the MultiSync A500+ or A700+ Macintosh cable adapter, call
NEC Technologies at (800) 820-1230.
4. For download information on the Windows
®
95/98 INF file for your
MultiSync monitor, refer to the References section of this User’s Manual.
5. Connect one end of the power cord to the MultiSync A Series monitor and the
other end to the power outlet (Figure C.1).
6. Turn on the monitor (Figure D.1) and the computer.
NOTE: If you have any problems, please refer to the Troubleshooting section of
this User’s Manual.
