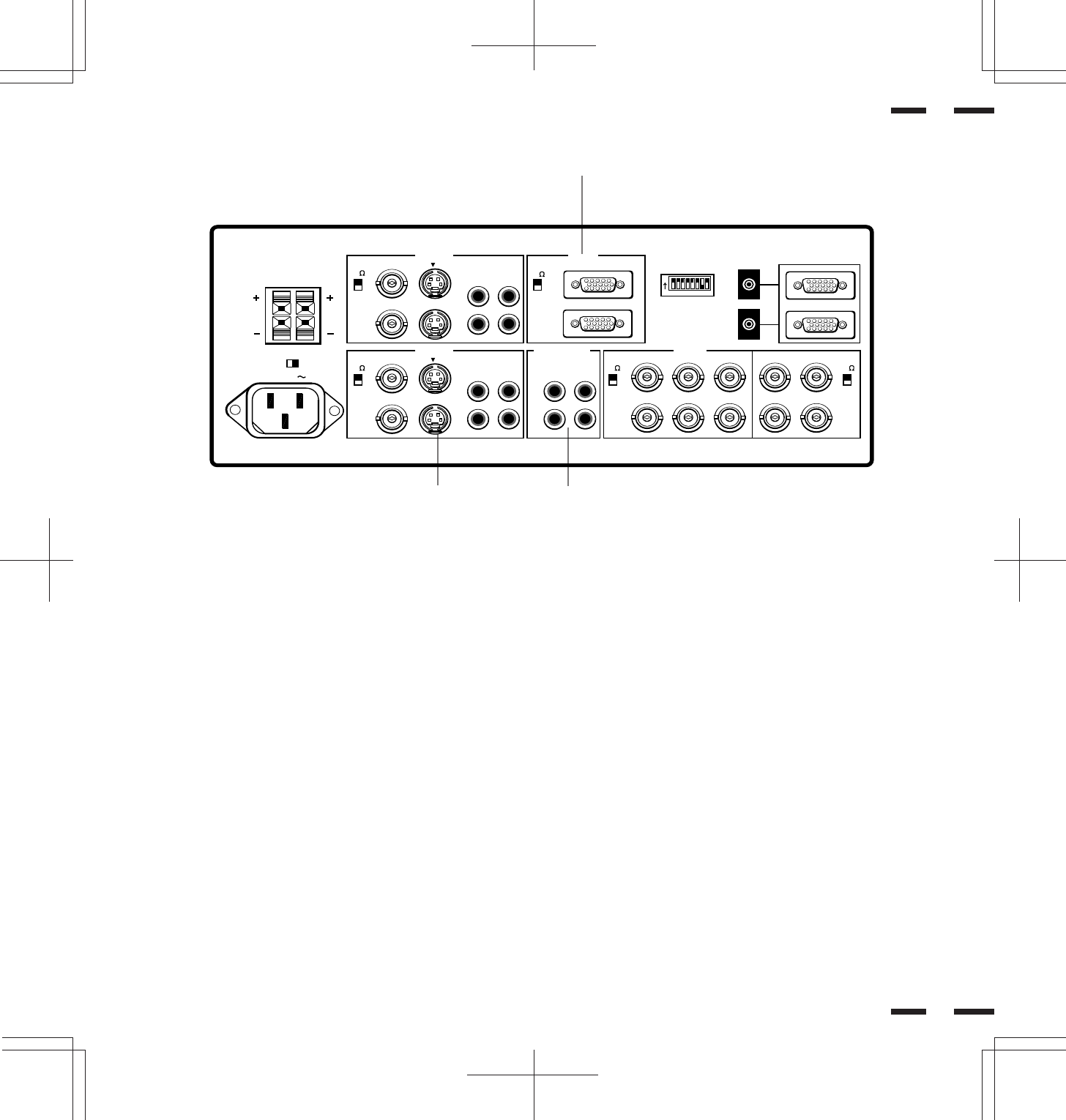

Terminal Board
DIP SW REMOTE
EXT SPEAKERS
SPEAKERS MUST HAVE
MORE THAN 5WATT RATING
IMPEDANCE 8 OHM
AC IN
SPEAKER SELECT
RIGHT LEFT
75
HIGH
INT EXT
BNC
IN
IN
R L(MONO)
AUDIO
VIDEO 1
S
1 2 3 4 5 6 7 8
ON
75
HIGH
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
IN
RGB1
PC / EXT CTL
75
HIGH
BNC
IN
IN
R L(MONO)
AUDIO
VIDEO 2
S
IN
R
R/C
R
/P
R
G/Y/Y B/C
B
P
B
IN
OUT
H/CS V
L(MONO)
IN
75
HIGH
75
HIGH
RGB AUDIO RGB 2
F
EG
E VIDEO 2
VIDEO 2 IN (BNC type).... Connect another VCR or laser disk player here to
display the video.
S-VIDEO 2 IN ..... Connect S-Video input from another external source like
a VCR.
THROUGH OUT (BNC type)....... Connect to a second monitor’ s video input
to relay the video signal input at VIDEO 2 IN.
THROUGH OUT (S-VIDEO) ....... Connect to a second monitor’ s S-connector
input to relay the video signal input at S-VIDEO 2 IN.
75 Ω/HIGH Impedance Select Switch for BNC type .... Set to “75 Ω” during
normal operation. In multiple connections using VIDEO 2 IN and
THROUGH OUT (BNC type) terminals, set to “HIGH” on all but the last
monitor. Set to “75 Ω” on the last monitor only.
AUDIO R IN.....This is your right channel audio input for stereo sound.
AUDIO L IN (MONO)...... This is your left channel audio input for stereo
sound coming from video equipment or audio system. It also serves as the
mono audio input.
AUDIO R THROUGH OUT ..... Connect to a second monitor’ s right channel
audio input.
AUDIO L THROUGH OUT ..... Connect to a second monitor’ s left channel
audio input.Terminal Board(continued)
F RGB 1 (Mini D-Sub 15-pin)
RGB Input/Throughout ..... Attach either end of the RGB Cable to a computer,
and then attach the other end to Input terminal. You can then use Through
out terminal, if you wish, to output the computer signal to a monitor. (If you do
use a second monitor, turn the monitor switch to “on.”)
75 Ω/HIGH Impedance Select Switch .... This switch should be “75Ω” for
normal use without external termination or when your RGB signal should be
terminated with 75Ω. Switch to the “HIGH” position when you have another
monitor attached to your RGB through-out connector.
G RGB AUDIO
AUDIO R IN .... This is where you connect RGB right audio output from a
computer or another RGB source.
AUDIO L IN(MONO) ... This is where you connect RGB left audio output from
a computer or another RGB source.
AUDIO R THROUGH OUT ...... Connect to a second monitor’ s RGB right audio
input.
AUDIO L THROUGH OUT ..... Connect to a second monitor’s RGB left audio
input.
