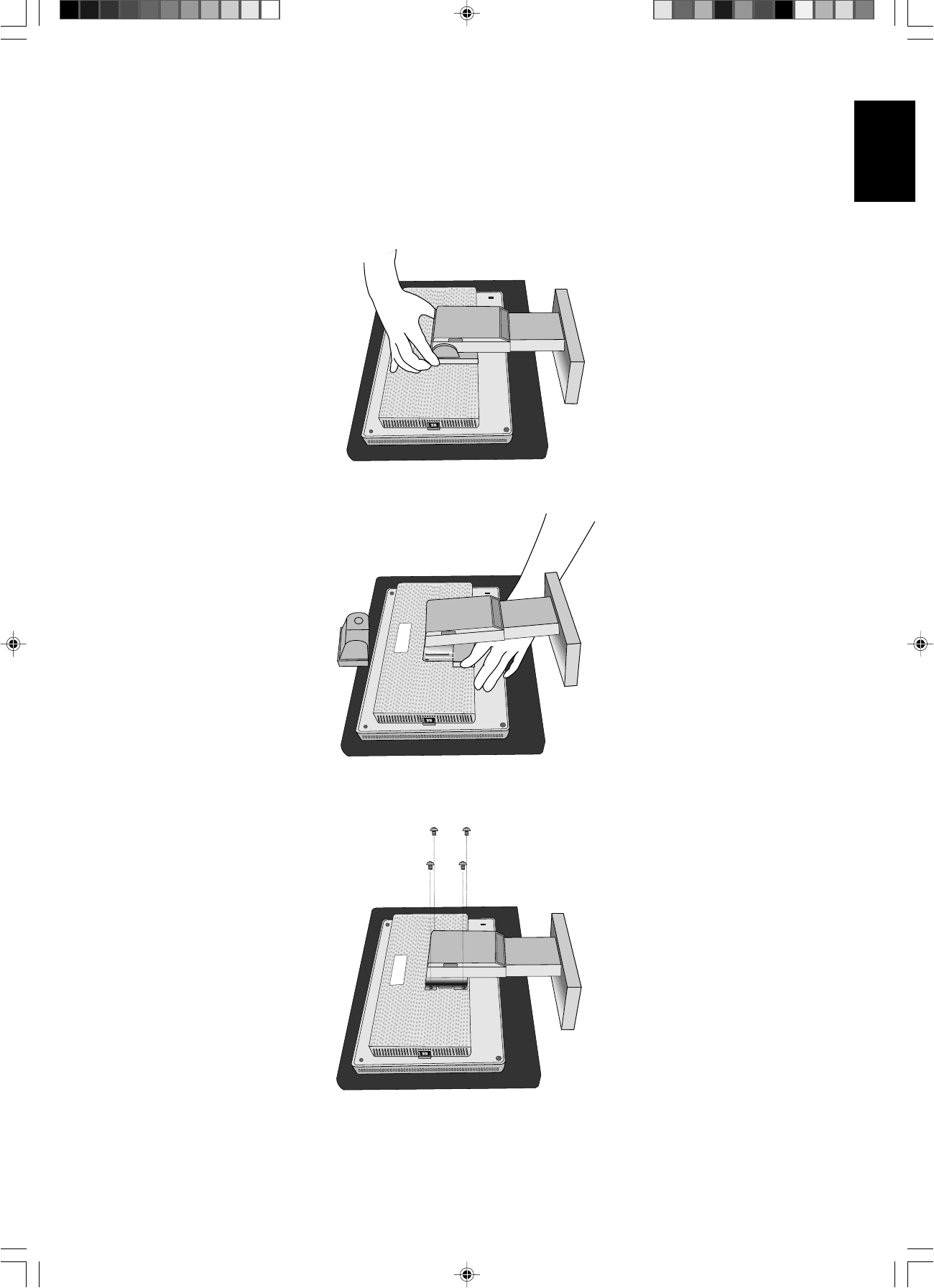

4. Remove the hinge cover (Figure R.1 and Figure R.2).
5. Remove the 4 screws connecting the monitor to the stand and lift off the stand assembly (Figure R.3) the monitor is now
ready for mounting in an alternate manner.
6. Connect the AC cord, signal cable and audio cable to the back of the monitor (Figure R.4).
7. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
Handle with care when removing stand.
Figure R.3
Figure R.1
Figure R.2
