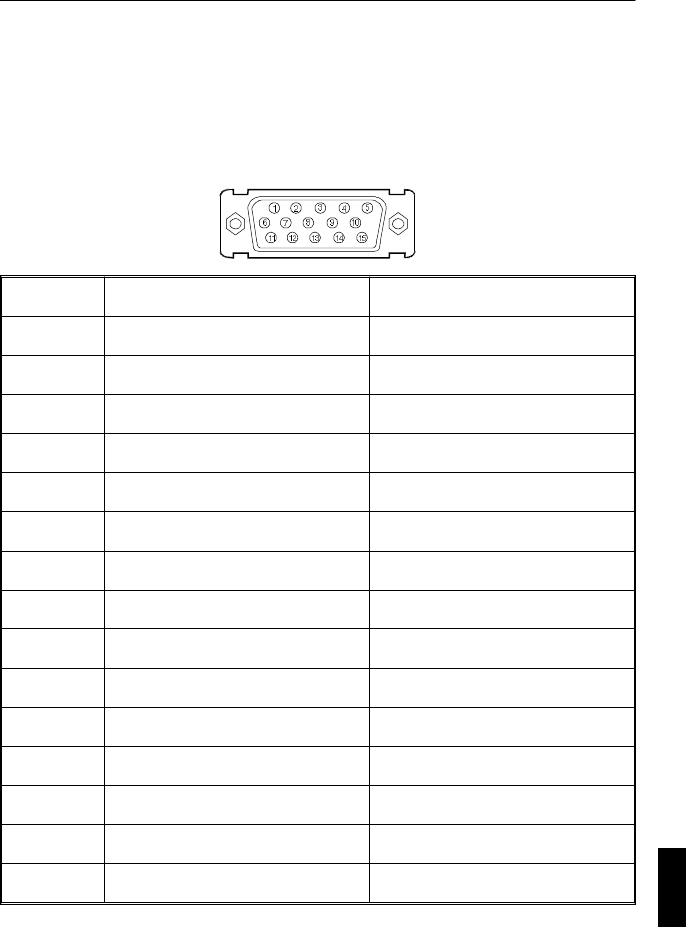

App. A PIN ASSIGNMENTS
Pin No. LCD400 LCD2000
1 RED RED
2 GREEN GREEN
3 BLUE BLUE
4 NO-CONNECTION GROUND
5 GROUND NO-CONNECTION
6 GROUND GROUND
7 GROUND GROUND
8 GROUND GROUND
9 NO-CONNECTION NO-CONNECTION
10 GROUND GROUND
11 GROUND GROUND
12 SDA NO-CONNECTION
13 H.SYNC, H/V.SYNC H.SYNC, H/V.SYNC
14 V.SYNC V.SYNC
15 SCL NO-CONNECTION
MINI D-SUB 15 P
App. A PIN ASSIGNMENTS A - 1
