16
6.2 Chassis Installation and Rack Mounting
To install the media converter in a 10-inch or 19-inch with
standard rack, follow the instructions described below.
Step 1: Place your GT-80X on a hard at surface, with the
front panel positioned towards your front side.
Step 2: Carefully slide in the module until it is fully and
rmly tted into the slot of the chassis.

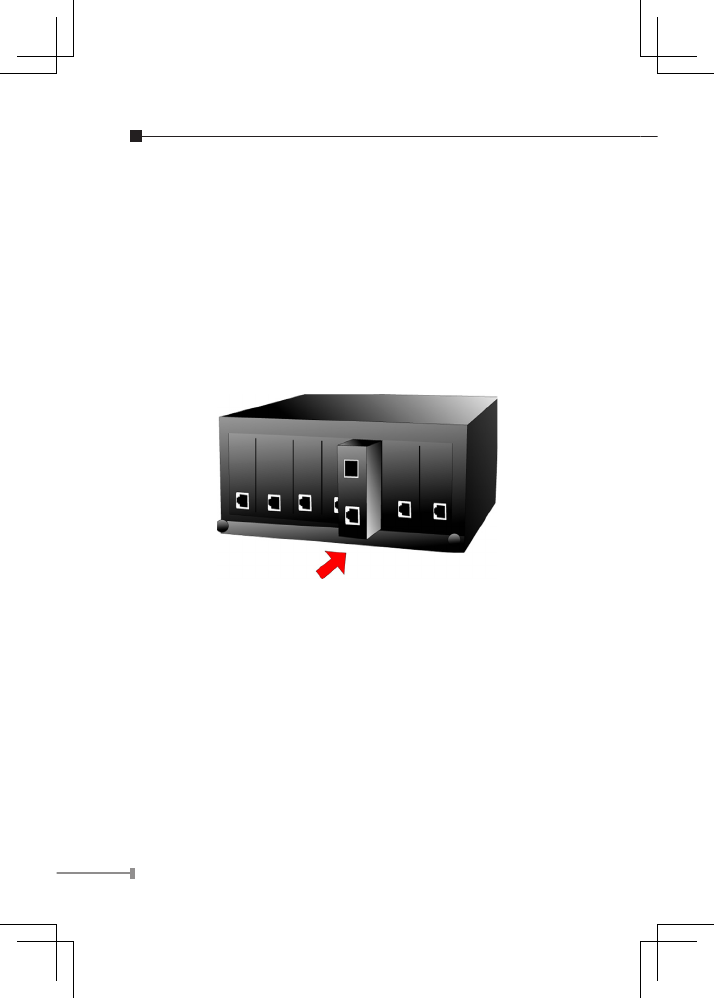

Figure 6-3: Insert a media converter into an available slot
Step 3: Attach a rack-mount bracket to each side of the
Chassis with supplied screws attached to the
package.
Step 4: After the brackets are attached to the chassis, use
suitable screws to securely attach the brackets to
the rack, as shown in Figure 6-3.
Step 5: Proceed with the steps 4 and steps 5 of session
6.1 Stand-alone Installation to connect the
network cabling and supply power to your switch.
