6-4
CHAPTER6
PART NAMES AND FUNCTIONS

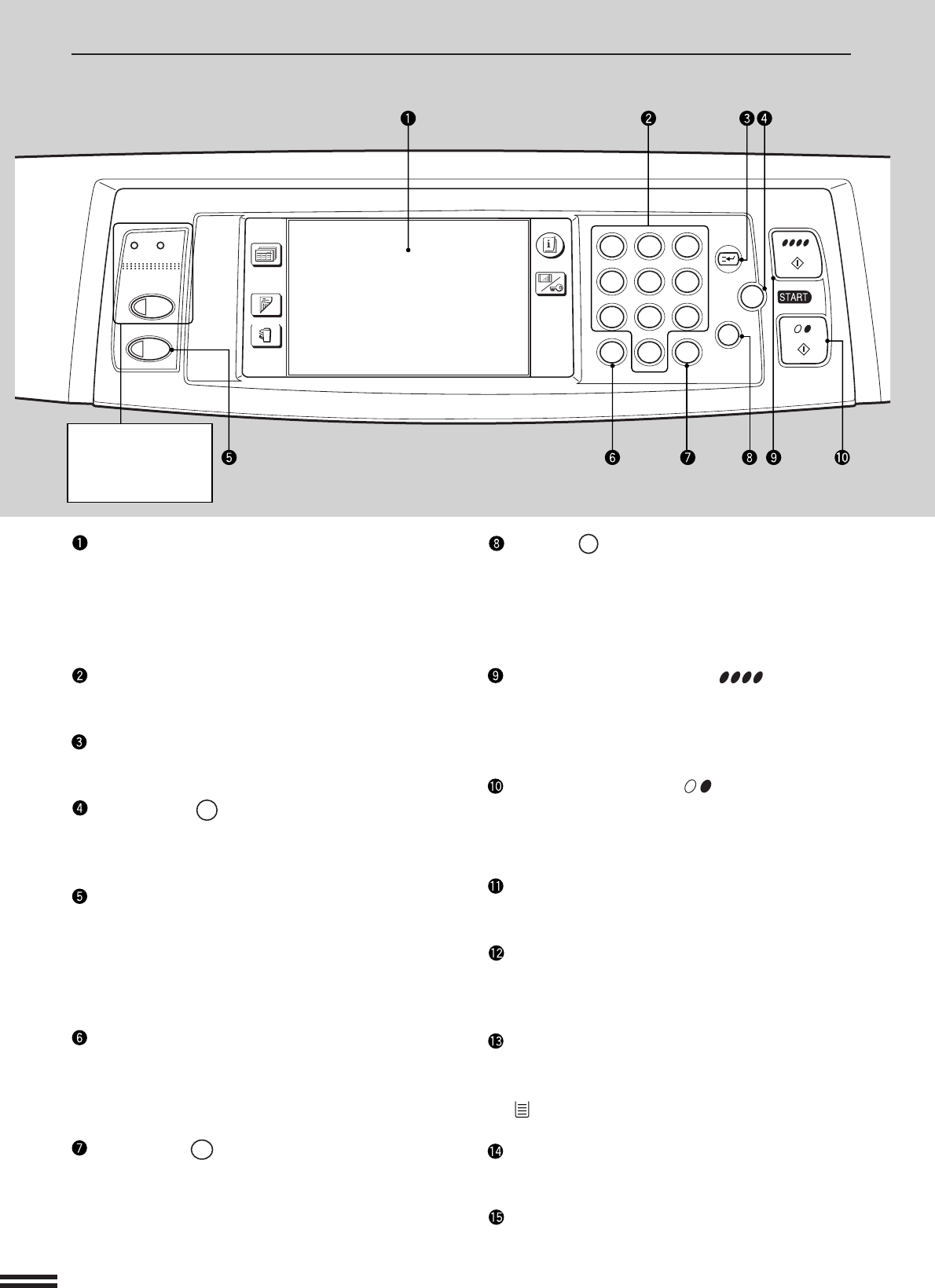

Operation Panel
LCD touch panel
Displays information to assist the operator.
Various operation keys are included in the touch
panel depending on the particular screen being
displayed.
10-key pad
Used to set the copy quantity.
INTERRUPT key and indicator (p. 2-20)
Interrupts a copy run.
CLEAR ALL (
CA
) key
Clears all selected settings and returns the copier
to the initial settings.
COPY key
Press to return to the COPY mode when the
PRINT mode is active. If pressed in the COPY
mode, the total output count will be displayed
during the key press.
Press to exit the sleep mode.
AUDIT key
Press to enter the account number if the auditing
mode has been set for only the color copy mode.
Also closes an open account.
PROGRAM (
P
) key (p. 2-18)
Press to select the job memory mode.
CLEAR (
C
) key
Press to clear the copy quantity display, or press
during a copy run to terminate copying. The
copier will stop after copies in progress are
finished.
COLOR COPY START ( ) key and
indicator
Color copying is possible when the indicator is on.
Press to start color copying.
BLACK COPY START ( ) key and indicator
Black/white copying is possible when the
indicator is on.
Press to start black/white copying.
SPECIAL MODES key (p.3-1)
Press to select special functions.
Message display
Messages are displayed regarding copier status
and operation.
Paper size display
The sizes of loaded copy paper are displayed and
the selected paper feed location is highlighted.
indicates the amount of copy paper.
Copy quantity display
Displays the specified number of copies.
Original size display
The original paper size is displayed.
12
3
456
789
0
P
C
CA
CLEAR
PROGRAM
AUDIT
INTERRUPT
CLEAR
ALL
PRINT
COPY
DATA
ON LINE
OUTPUT
2-SIDED
COPY
SPECIAL
MODES
INFORMATION
CUSTOM
SETTINGS
The key and
indicators are not
used for the copier
features.
GENERAL INFORMATION
Part names and functions
