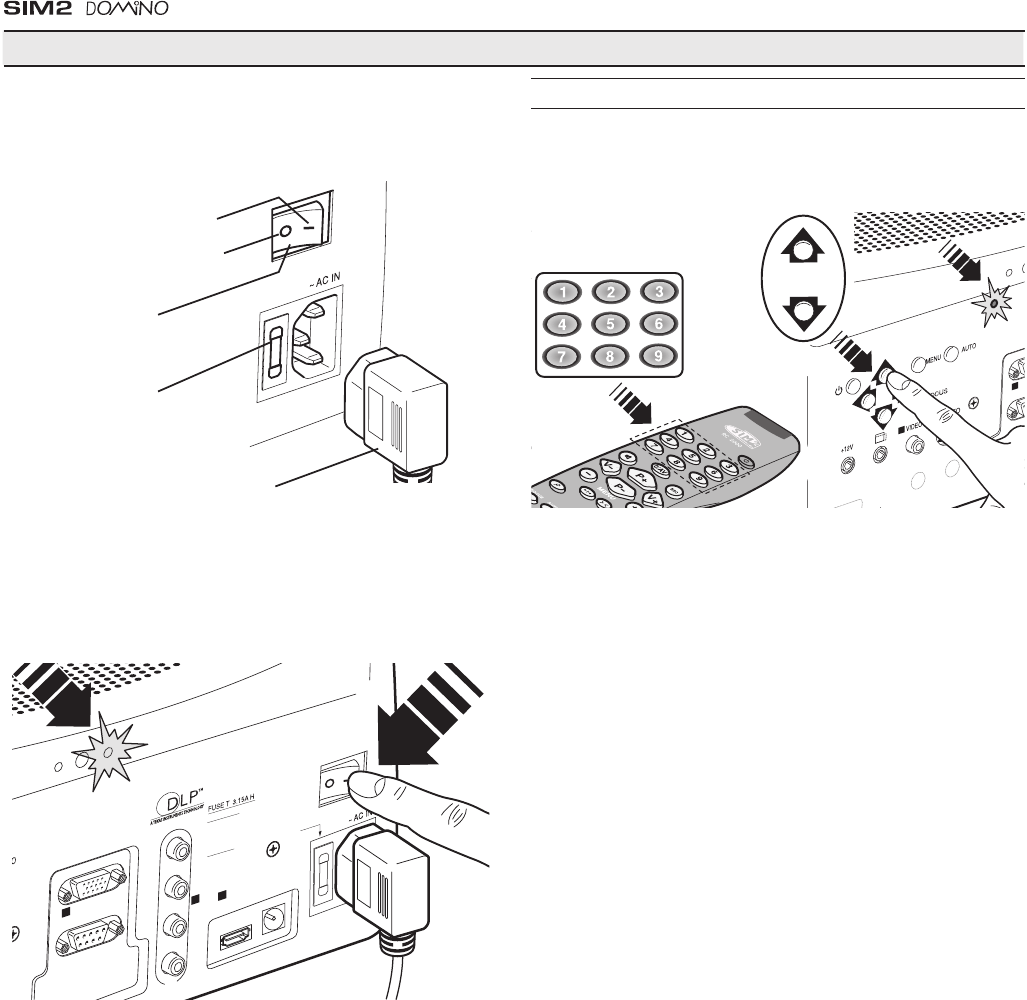

5 SWITCHING THE PROJECTOR ON AND OFF
WARNING: Connect the projector to a power supply with a
nominal voltage within the following values: 110-240 V AC,
50/60 Hz. It must be earthed (Fig. 12).
Position I : on
Position O : off
Power switch
Fused power
socket
Power plug
Fig. 12
In position I the projector will initialise itself (red and green leds
on) and then goes into standby mode (red led on) (Fig. 13).
HDMI
AUDIO
OUT
ZOOM
CONTROL (RS 232)
GRAPHICS RGB
R/Cr
G/Y
B/Cb
HV
2
4
3
5
ATTENTION: pour ne pas compromettre
la protection contre les resque d'incende
remplacer par un fusible de meme type
et de mems caracteristique
CAUTION: for continued protection against
risk of fire, replace
only with same type
SWITCH ON FROM STANDBY
With the remote control: press one of the keys 1...9 or with 0.
With the keypad: press the ON/OFF button.
ZOOM
CONTROL (RS 232)
GRAPHICS RGB
1
2
4
When the unit is switched on from standby the lamp switches on;
after a brief period of warming up, the image displays (green
led on). The projected image comes from the input selected
when the unit was last switched off (Fig. 14).
If a very short time has passed since the unit was last switched
off, the lamp may not switch on beause it is too hot.
Just wait a few minutes for the lamp to cool down sufficiently.
Fig. 13
Fig. 14
