LED ALARM CLOCK WITH VIBRATOR
MODEL SB300SS
OPERATION INSTRUCTIONS
IMPORTANT- Please read these instructions carefully before use and retain for future
reference.

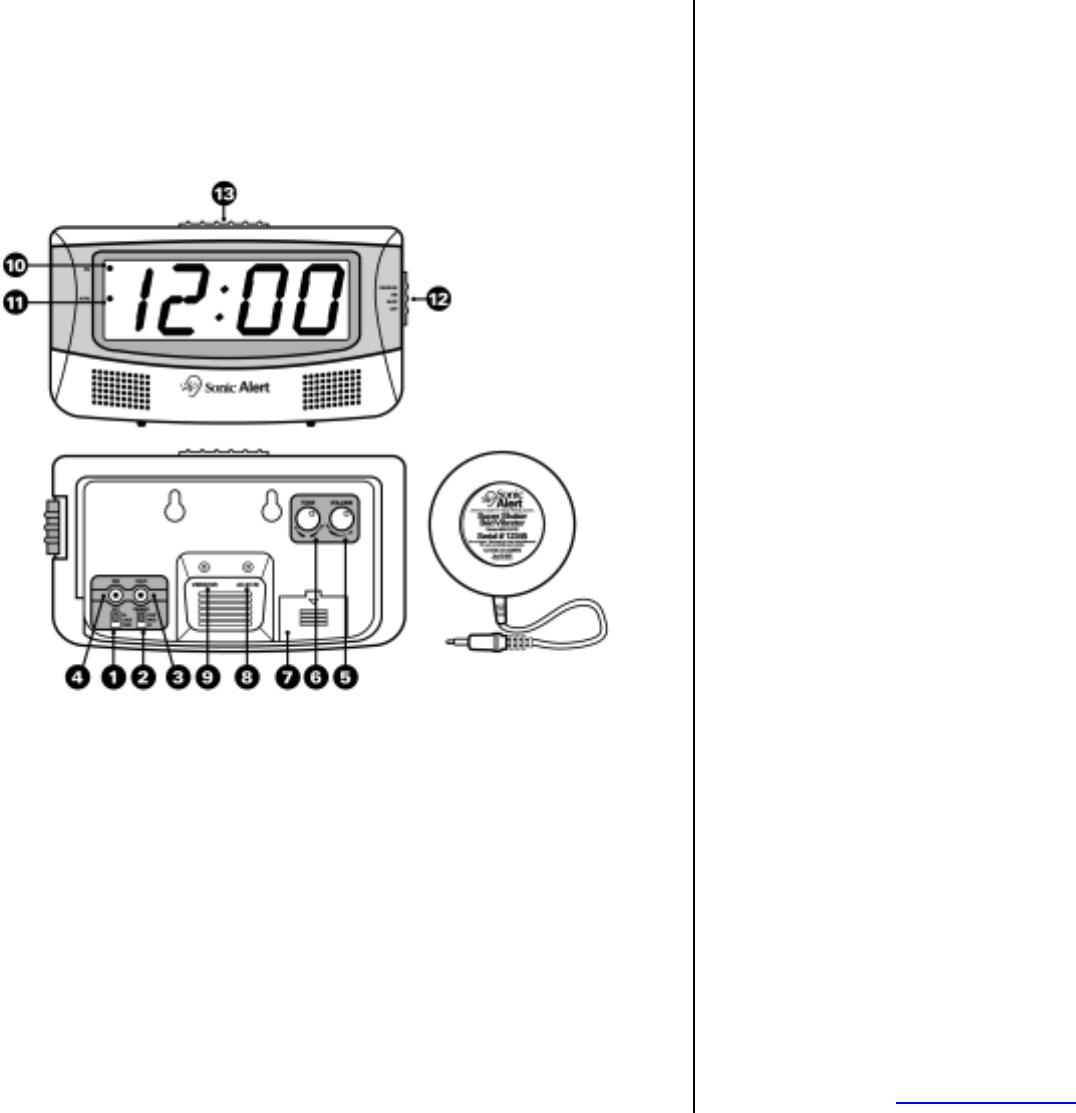

Features:
1) Alarm / Time set 8) AC Power Input
2) Dimmer Switch 9) Vibrator Input
3) Hour Set Button 10) PM Button Indicator
4) Minute Set Button 11) Alarm Indicator
5) Volume Knob 12) Function Switch
6) Tone Knob 13) Snooze Button
7) Battery Cover
Setting the correct time-
1) Slide the setting switch (1) to the position marked “TIME”.
2) Depress the hour button as many times as necessary to advance the clock display
until the hour is correct.
3) Depress the minute button as many times as necessary to advance the clock
display until the minute is correct.
4) Slide the setting switch (1) back to the position marked “LOCK” This will
prevent the clock time from being changed.
5) A lighted dot (10) in the upper left hand clock display indicates time is PM, no
light indicates time is AM.
Setting the alarm time-
1) Simply follow the instructions mentioned under “ Setting the correct time”
except that you will have to slide switch (1) to the “AL” position.
2) Make sure the alarm time is correctly set for AM or PM lighted dot (10)
indicates PM). Be sure to release the HOUR and MIN set buttons before
releasing the ALARM button.
Snooze Operation-
SNOOZE button (13) press after alarm has sounded. The alarm will be turned
off for 9 minutes for extra sleep. The alarm will come back again after 9
minutes. You may repeat this cycle many times, up to 59 minutes maximum.
Alarm-
Set the alarm time you wish and slide the VIB / BUZZ, VIB, BUZZ, OFF (8) switch to
the desired position. VIB / BUZZ for both vibrator & sound, or VIB for vibrator only or
BUZZ for sound only. To turn alarm off select the OFF position
Tone-
Adjust the tone (6) by rotating the tone wheel located on the back top right side.
Volume-
To adjust the volume (5) rotate the volume wheel located on back right side.
Bed Shaker / Vibrator- Figure B
1) Attach the bed shaker jack to the back of clock at VIBRATOR input.
2) To turn on vibrator slide switch (12) to VIB or VIB/BUZZ position.
3) Place vibrator under mattress or pillow.
AC-9V Power Input -
Attach the AC power supply input to the back of clock at AC-9V IN next to the
VIBRATOR input, smaller input of the two. Important do not confuse input with
vibrator input
Battery Backup-
To use battery backup, you can install a 9-volt alkaline battery in the back of the
clock. Located under the battery cover (7). Battery not included.
GENERAL DATA
Power: 110 Volts, Consumption 8 watts, 60Hz
UL listed transformer (Underwriters Laboratories)
Made in China
Sonic Alert 1050 East Maple Rd. Troy, MI 48083
www.SonicAlert.com
1-800-566-3210 V/TTY
