Machine Maintenance Procedures 3-31
LCD (Liquid Crystal Display) Module Removal 0
Prerequisite:
Mainboard Removal
1. Remove four (4) screws (A) from LCD hinges (Figure 3-27).

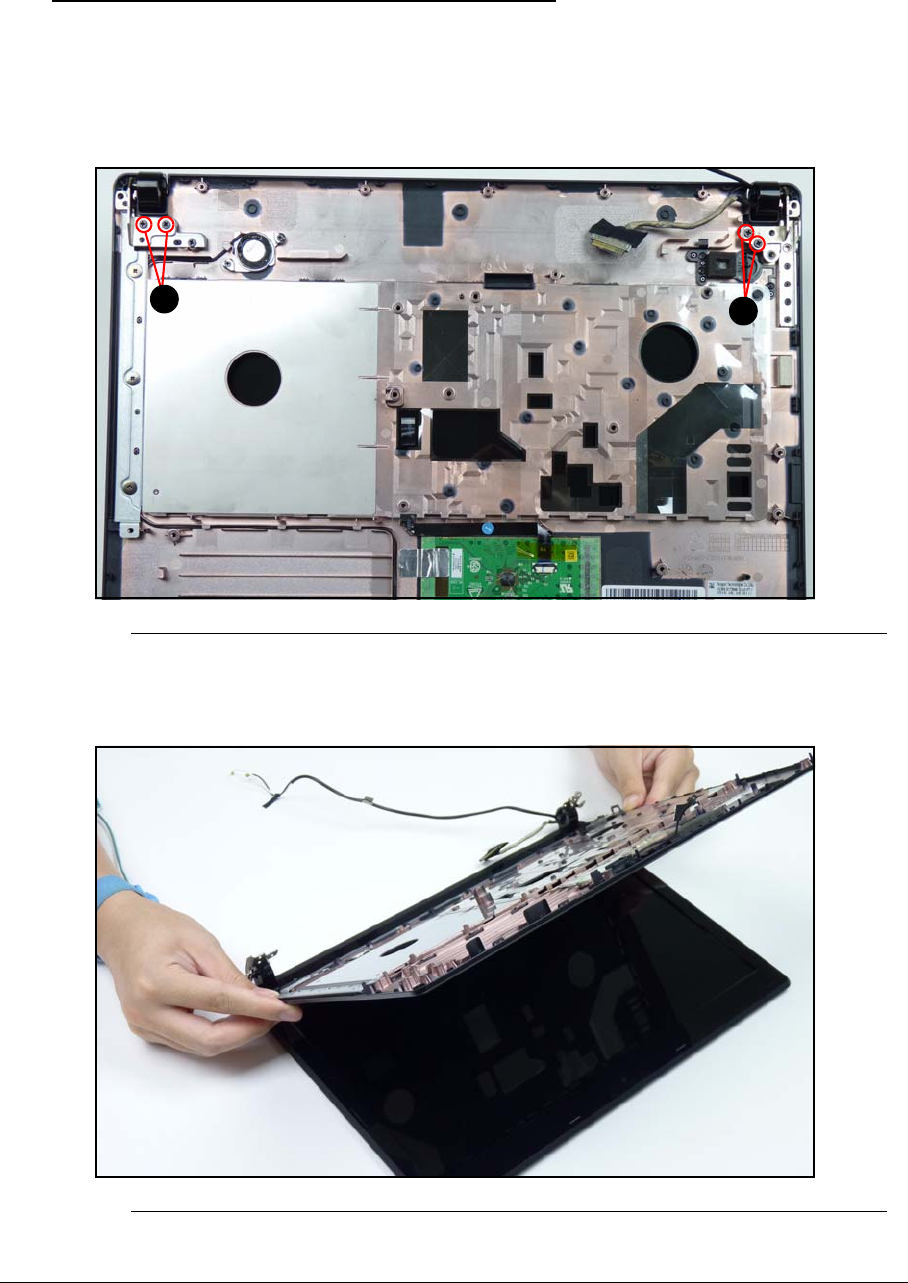

Figure 3-27. LCD Hinge Screws
2. Remove the upper cover from the LCD module (Figure 3-28).
Figure 3-28. LCD Module
