22 Configuring the Matrix Modules Chapter 2
NOTE When the E1406A Command Module is the resource manager, the
interrupt line jumper must be installed in position 1. However, if you are
using an embedded computer with the E1406A Command Module,
interrupt line 2 should be selected. The Level X interrupt line should not
be used under normal operating conditions.

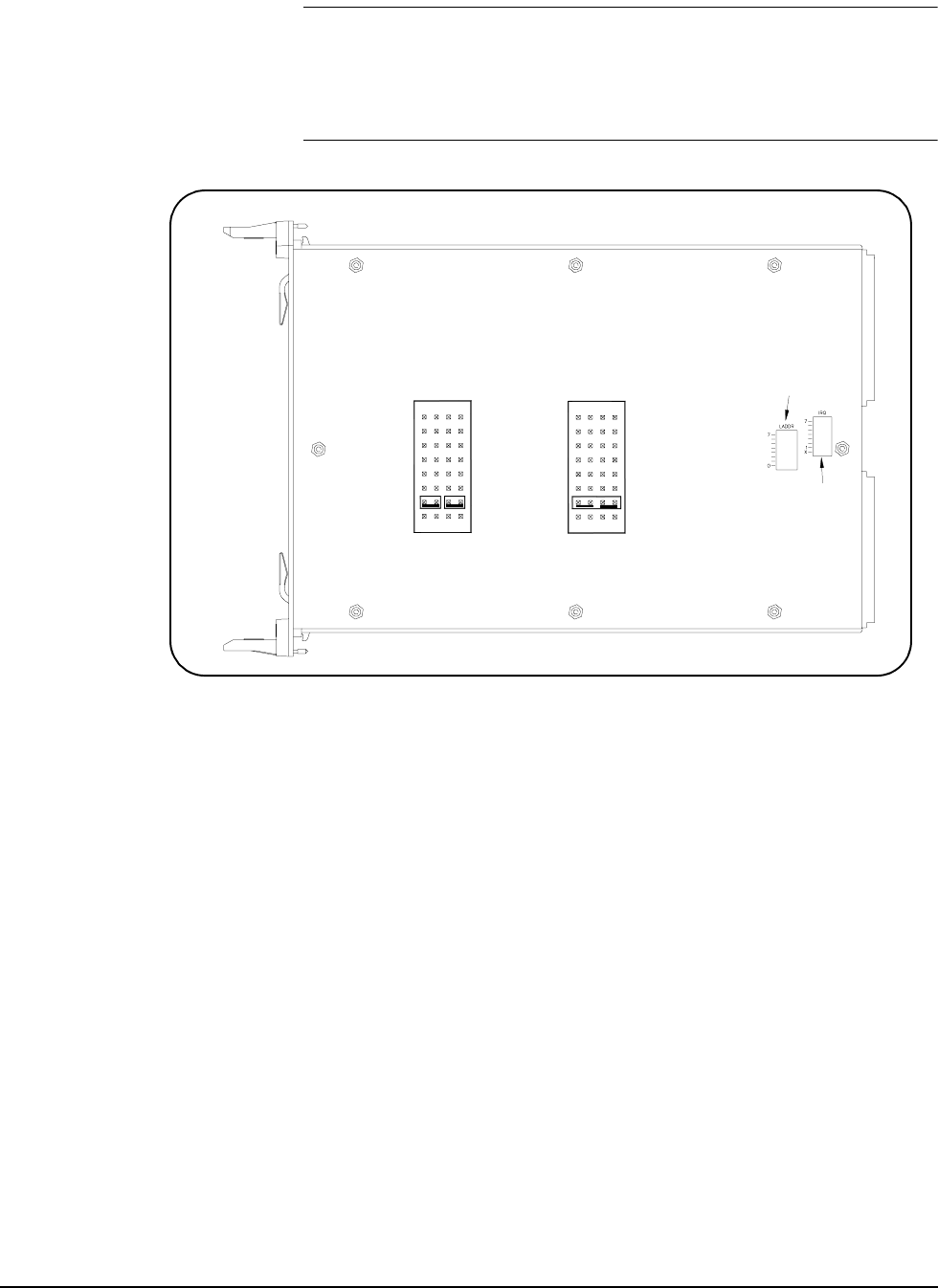

Figure 2-3. Setting the Interrupt Level
Logical Address
Switch Location
Interrupt
Priority
Location
Using 4-Pin
IRQ
7
IRQ
7
2
4
6
5
3
X
1
2
6
5
3
4
X
1
JumperJumper
Using 2-Pin
