Static-Safe Workstation
Static-Safe Workstation
Electrostatic discharge (ESD) can damage or destroy electronic components.
All work on electronic assemblies should be performed at a static-safe work-
station. The following figure shows an example of a static-safe work station
using two types of ESD protection:
Conductive table-mat and wrist-strap combination.
Conductive floor-mat and heel-strap combination.

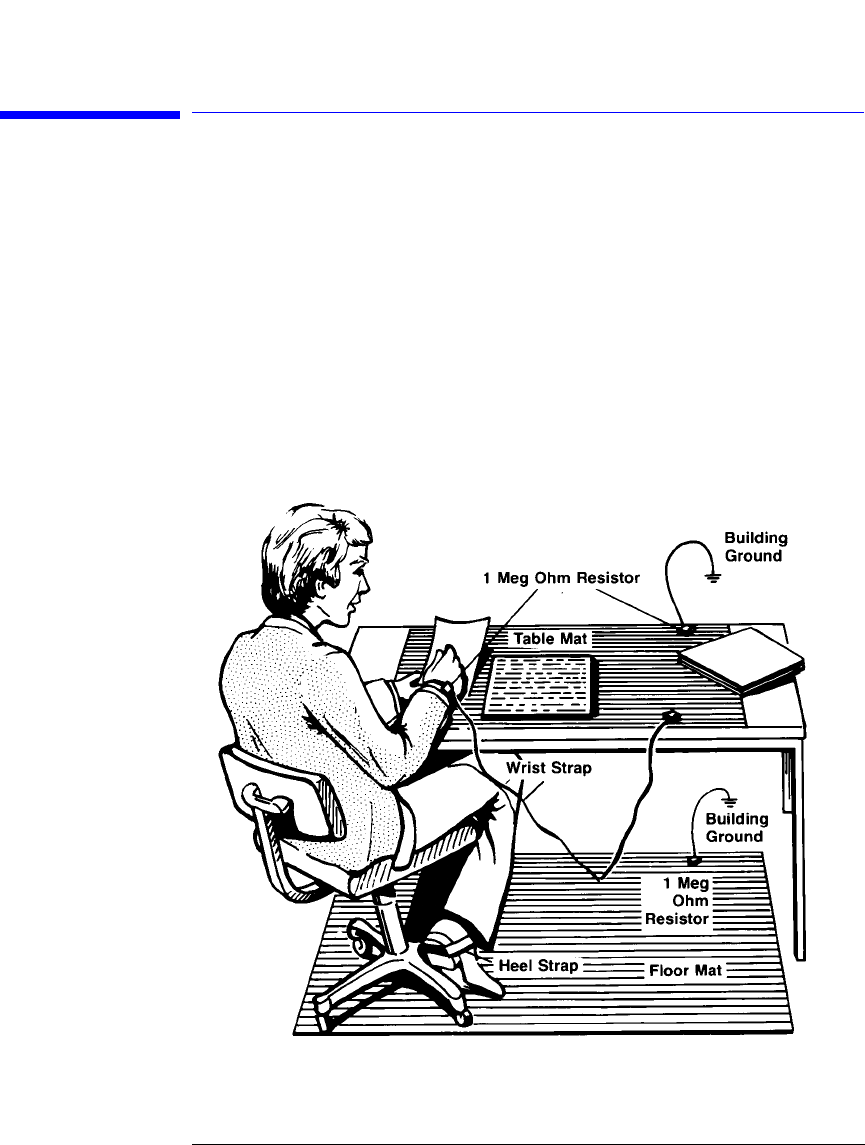

Figure 2. Static Safe Workstation
