Connections and Wiring
22
NetLinx Integrated Controllers
ICSNet RJ-45 Connections/Wiring

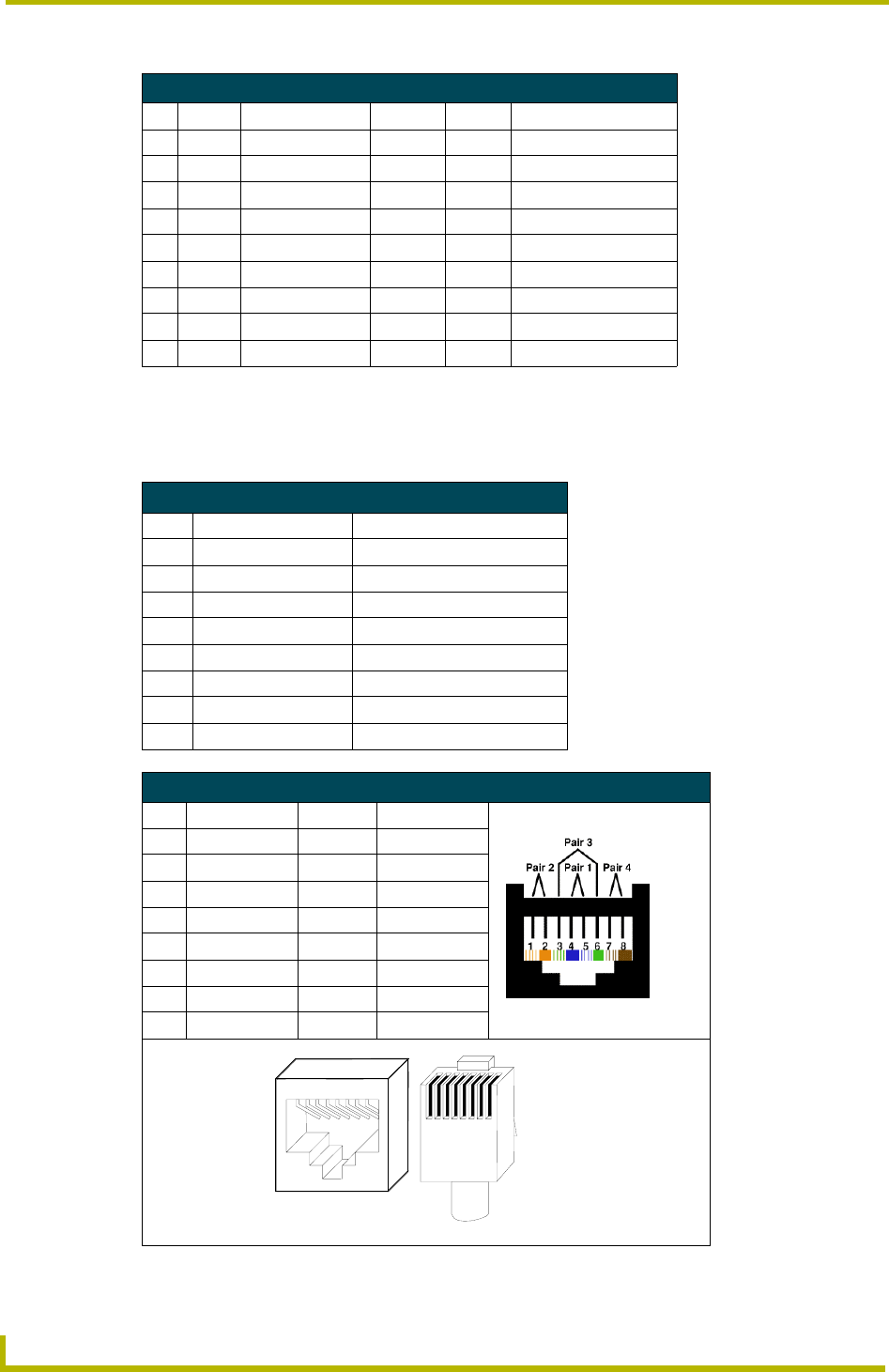

The following tables show the signal and pinouts/pairing information to use for ICSNet RJ-45
connections.
RS-232/422/485 Device Port Wiring Specifications
Pin Signal Function RS-232 RS-422 RS-485
1 RX- Receive data X X (strap to pin 9)
2 RXD Receive data X
3 TXD Transmit data X
4 TX+ Transmit data X X (strap to pin 6)
5 GND Signal ground X X
6 RX+ Receive data X X (strap to pin 4)
7 RTS Request to send X
8 CTS Clear to send X
9 TX- Transmit data X X (strap to pin 1)
ICSNet RJ-45 Signals
Pin Signal-Master Signal-Device
1 TX + RX +
2 TX - RX -
3N/A N/A
4GND GND
5N/A N/A
6N/A N/A
7 RX + TX +
8 RX - TX -
RJ-45 Pinout Information (EIA/TIA 568 B)
Pin Wire Color Polarity Function
1 Orange/White + Transmit
2 Orange - Transmit
3 Green/White - Mic
4 Blue - Ground
5 White/Blue + 12 VDC
6 Green + Mic
7 White/Brown + Receive
8 Brown - Receive
TIA 568B
1
2
3
4
5
6
7
8
1 2 3 4 5 6 7 8
RJ-45 connector - pin configurations
(female) (male)
