Take Apart Power Supply, Rev. A - 66

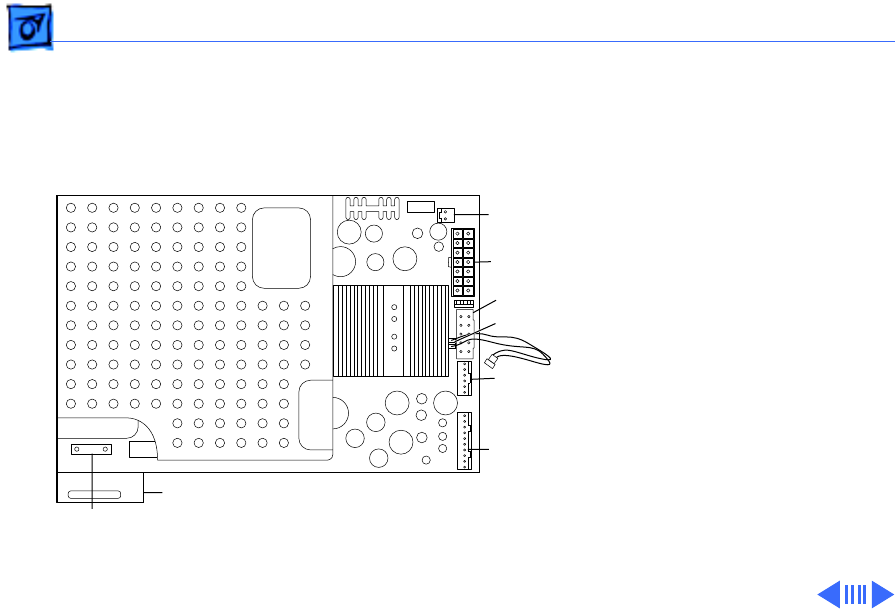

Replacement Note: This
diagram shows the location
of the rear bracket and the
power supply cable
connections for the Rev. A
board. For Rev. B diagram,
See “Power Supply, Rev. B”
Rear bracket
2-pin fan cable (CN5)
14-pin power cable
(CN6)
10-pin video cable
(CN4)
6-pin power-supply-to-
analog-board cable (CN3)
CN5
CN6
CN4
CN13
CN3
CN7
Rear Bracket
CN2
Rev A Power Supply Diagram (5200) 
661-0331 (w/thermistor at CN13)
661-0930 (w/o thermistor at CN13)
