Take Apart Power Supply, Rev. A - 56

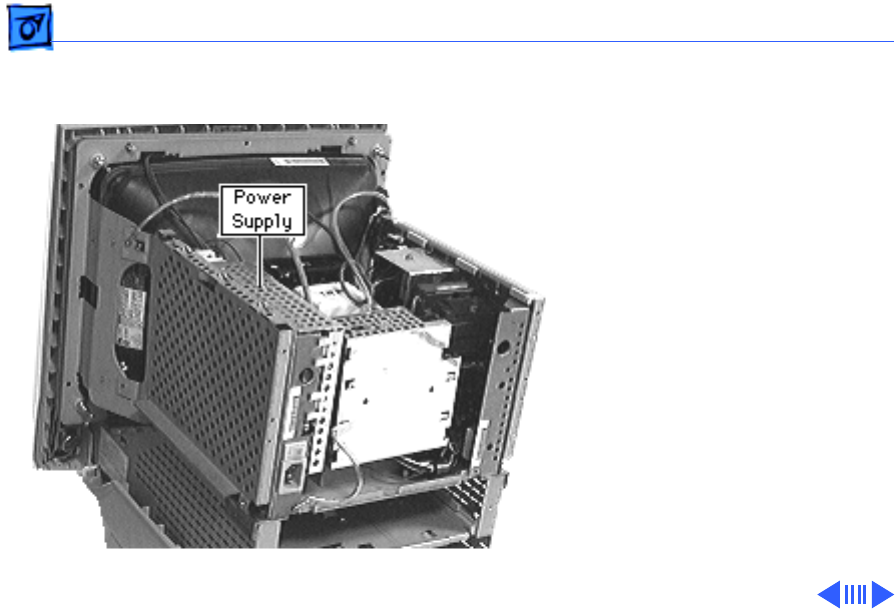

Power Supply,
Rev. A
Before you begin, identify if
you have a Rev. A or Rev. B
power supply. Refer to the
Parts Database or the next
page to identify the board. If
you are servicing a Rev. A
board, continue with these
procedures.
Remove the following:
•I/O door
•Rear housing
•Front bezel
•Logic board
•Rear EMI shield
