E. STACKING HDX PROJECTORS
Overview
Mount stacking points
Stacking HDX projectors
Aligning stacked HDX projectors
E.1 Mount stacking points
Necessary tools
Allenkey8mm
How to mount
1. Place the rst stacking point on a corner.

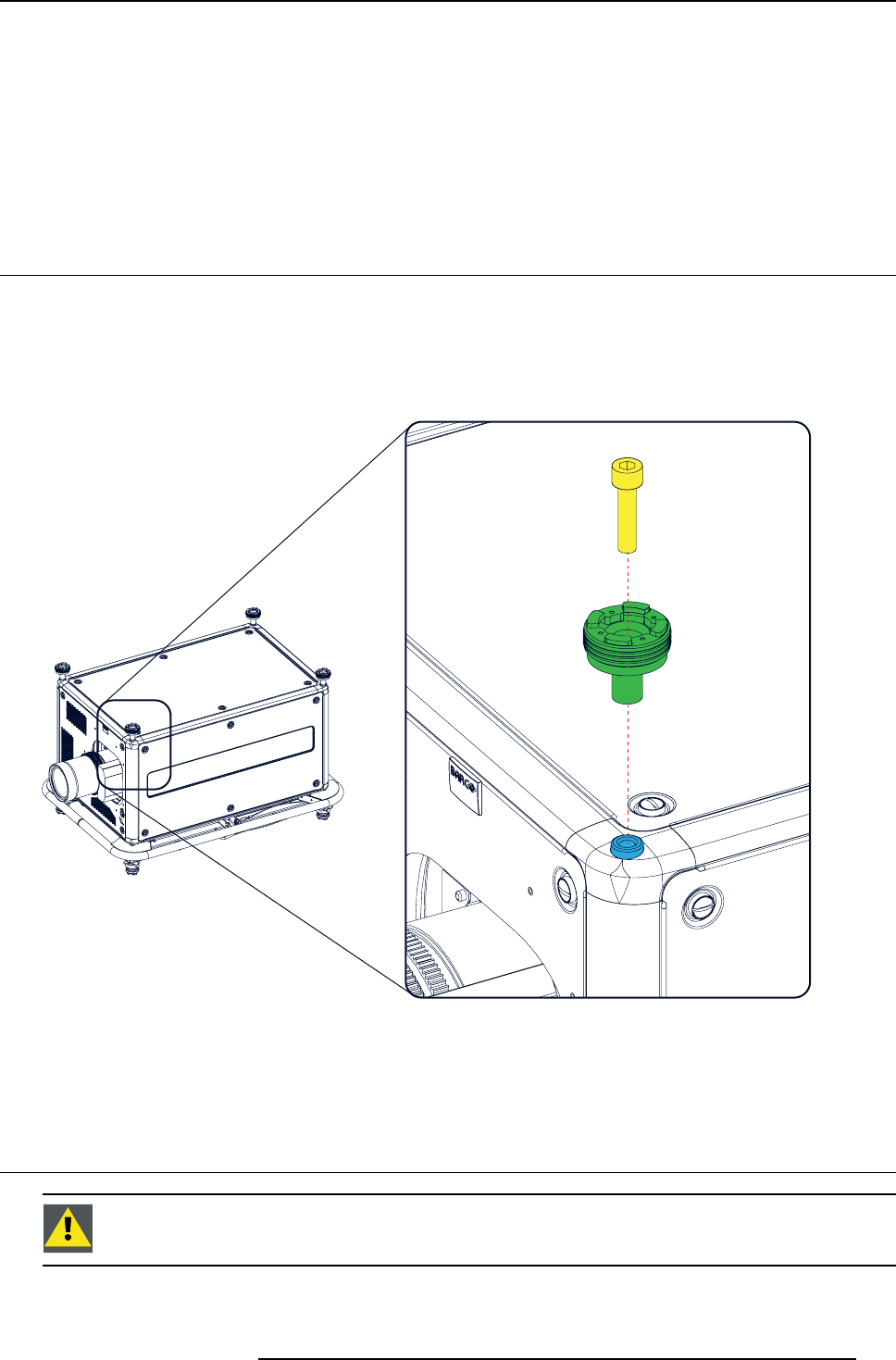

Image E-1
Stacking points, mount
2. Turn in the delivered bolt.
3. Repeat for the other 3 stacking points.
E.2 Stacking HDX projectors
CAUTION: Maximum stack three (3) projectors in a table mounted conguration.
Maximum stack two (2) projectors in a ceiling mounted conguration.
