Chapter 2: Overview
Page 11
2.4.3 Top Panel
Figure 2-3 shows the top panel. Table 2-3 describes its indicators.

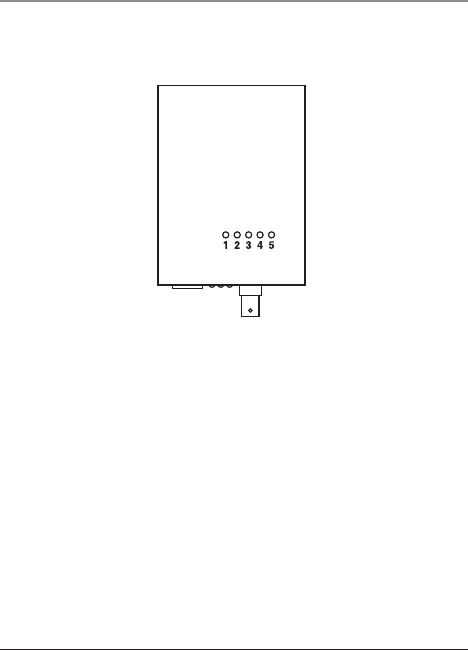

Figure 2-3. Top panel.
LEDs 1-5 on the top panel indicate the extender’s speeds. See Table 2-3 for details.
Units automatically select the fastest speed for your connection.
Table 2-3. LED indicators on the top panel.
LED Color Description
1 Green Link speed: 1–5 Mbps; Distance: 8530 ft. (2600 m)
Amber Link speed: 6–10 Mbps; Distance: 7874 ft. (2400 m)
2 Green Link speed: 11–16 Mbps; Distance: 6561 ft. (2000 m)
Amber Link speed: 17–20 Mbps; Distance: 5905 ft. (1800 m)
3 Green Link speed: 21–29 Mbps; Distance: 5249 ft. (1600 m)
Amber Link speed: 30–43 Mbps; Distance: 4593 ft. (1400 m)
4 Green Link speed: 44–54 Mbps; Distance: 3937 ft. (1200 m)
Amber Link speed: 55–63 Mbps; Distance: 3280 ft. (1000 m)
5 Green Link speed: 64–74 Mbps; Distance: 1968 ft. (600 m)
Amber Link speed: 75–85 Mbps; Distance: 656 ft. (200 m)
