Wireless Video Presentation System III Quick Installation Guide

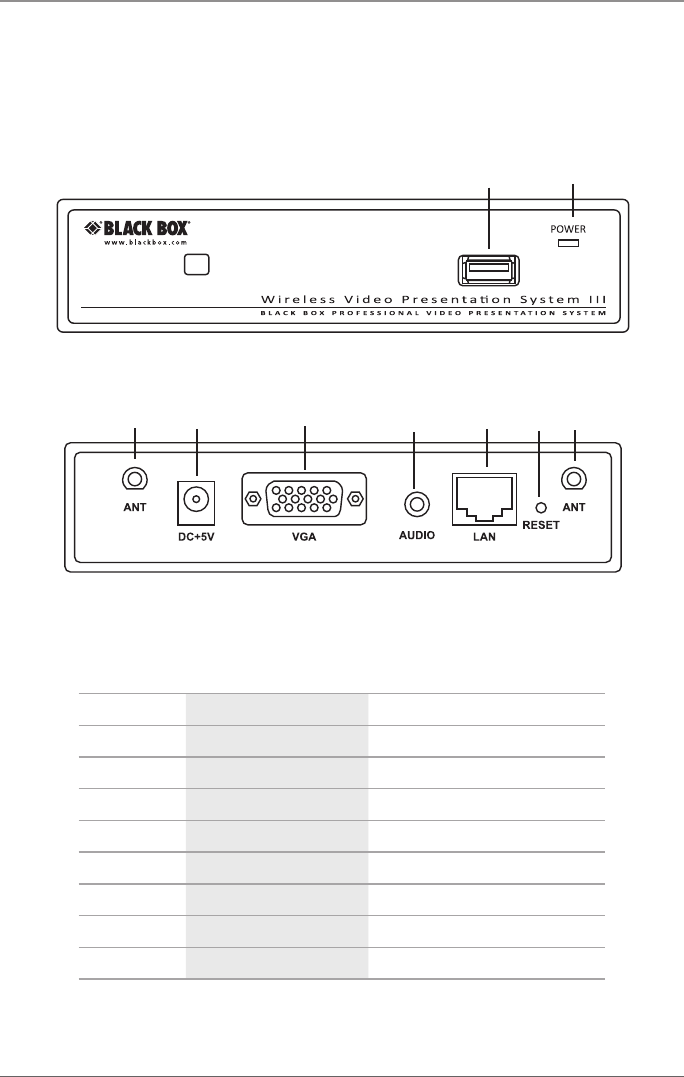

3. Hardware Description
Figures 3-1 and 3-2 illustrate the front and back panels of the unit. Table 3-1
describes its components.
1 2
Figure 3-1. Front panel.
3 4 5 6 7 8 3
Figure 3-2. Back panel.
Table 3-1. Wireless Presentation System III components.
Number Component Description
1 USB connector Connects to mouse and/or keyboard
2 Power LED Lights when power to the unit is on
3 Antenna port Connects to antenna
4 5-VDC power connector Links to power
5 VGA connector Connects to projector input
6 Audio connector Attaches to audio
7 RJ-45 port Links to LAN
8 Reset button Press to reset the unit
