7-34

Cisco TelePresence System 3200

OL-14521-01

Chapter 7 Building the Second Row Table Assembly

Parts List

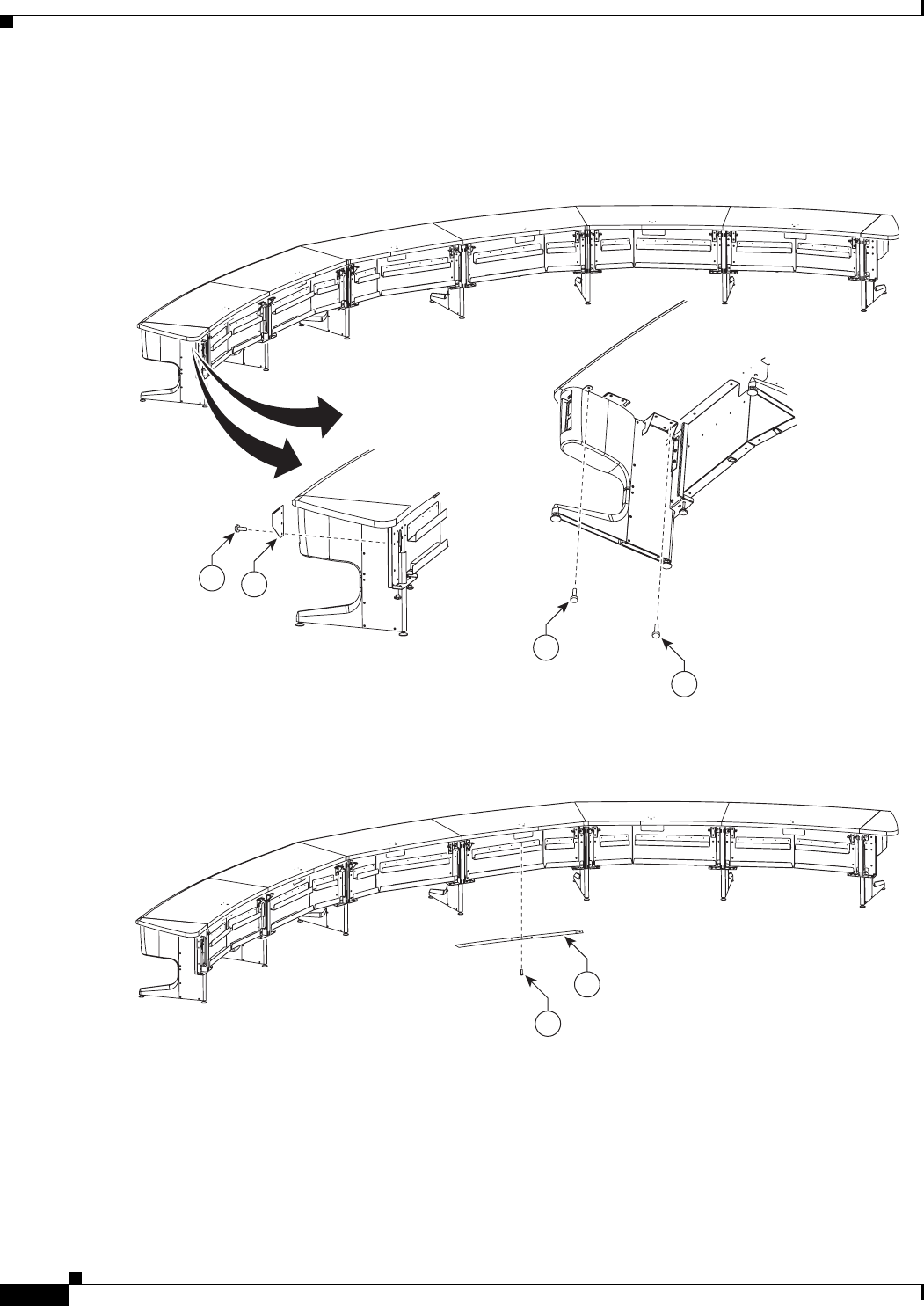

Step 31 Attach the panel end brace to the table leg and right tabletop end, then attach the table leg to the tabletop

and tabletop end.

Figure 7-31 Panel End Braces, Table Leg, Right Tabletop End and Table Section 5

Step 32 Attach the privacy panel alignment bracket to the underside of table section 1.

Figure 7-32 Section 1 Privacy Panel Alignment Bracket

35

35

35

21

204124

35

22

204125
