9
HDMI 1/2/3 Input
HDMI (High Denition Multimedia Interface) is a new type of connection that transmits digital audio and video
signals simultaneously over a single cable. A HDMI cable is required for the HDMI connection. These HDMI
input connectors are capable of receiving video at resolutions up to 1080p (1080-progressive).

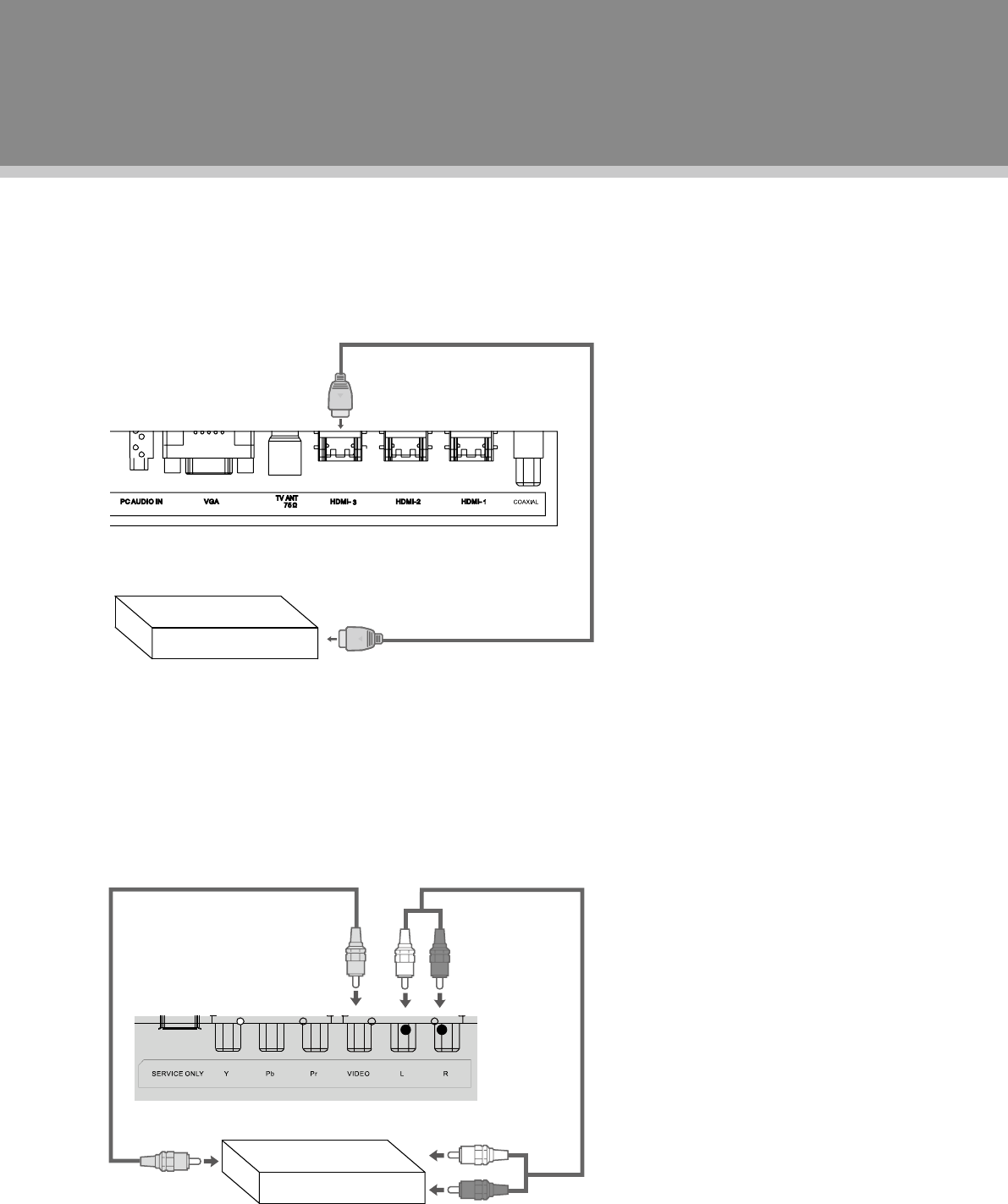

HDMI 1/2 is used in the same application as HDMI 3 illustrated in the below picture.
AV Input
The CVBS port is capable of accepting signals from standard video sources(e.g., cable/satellite boxes, DVD
players, VCRs, etc.)
Connect the VIDEO port with the yellow plug of the the supplied AV cable.1.
Connect the L, R port with the white/red plug of the supplied AV cable.2.
Cable Connections
NOTE:
The TV can receive video and •
audio signals simultaneously over
a DHMI cable.
If the external AV device does not •
support Auto HDMI, you must set
the output resolution appropriately.
Check that your HDMI cable is •
version 1.3 or higher. If the HDMI
cables don’t support HDMI version
1.3, flickering image or blank
screen can be a result. Please use
the latest cables that support at
least HDMI version 1.3.
