27D-Link DIR-300 User Manual
Section 3 - Conguration

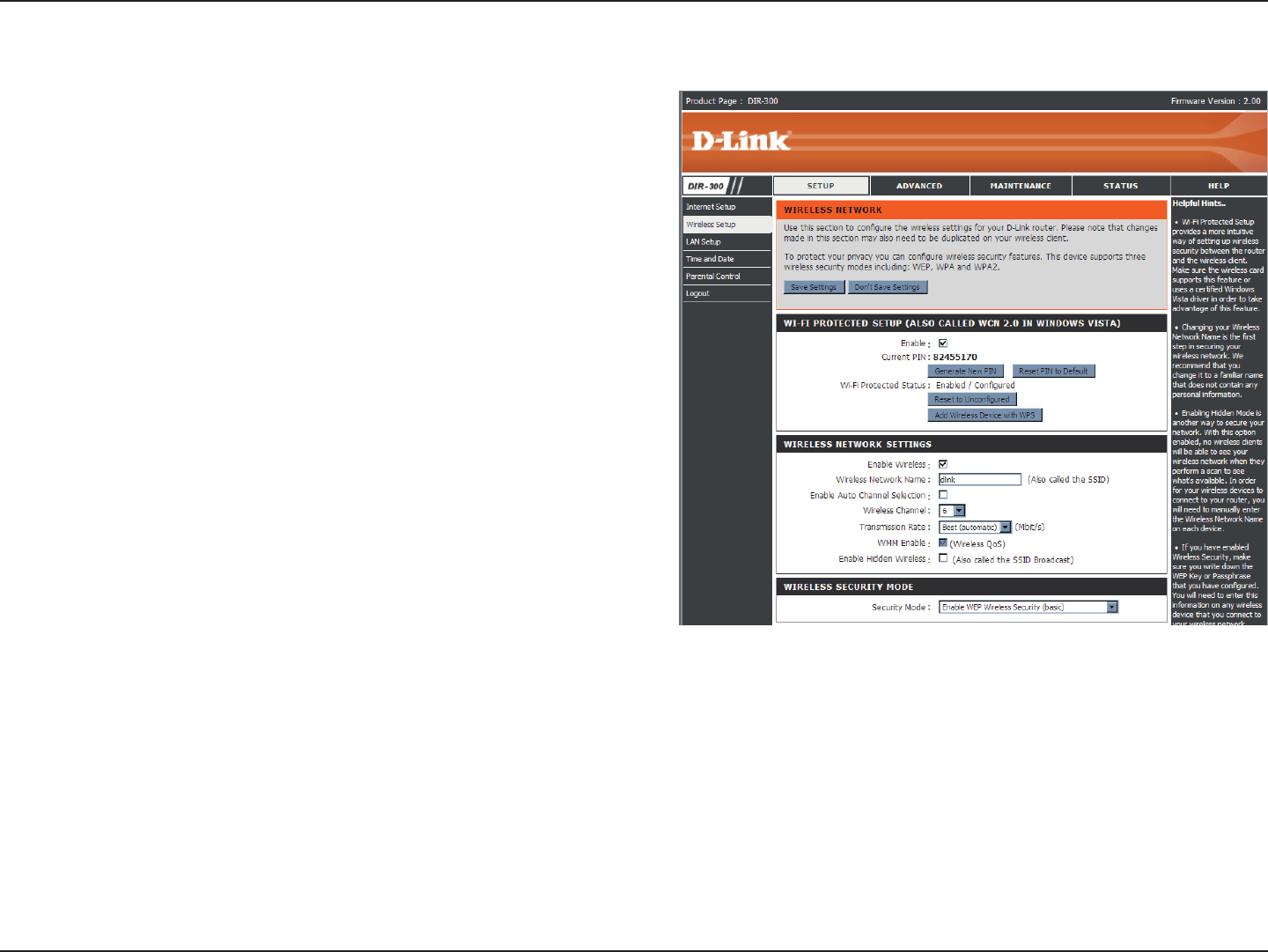

To implement Wi-Fi protection, or WCN 2.0, tick the Enable
checkbox, click either Generate New PIN or Reset PIN to
Default, and then congure the Wi-Fi settings below. Please
see the Setting Up Wi-Fi Protection (WCN 2.0 in Windows
Vista) section later in this manual for detailed conguration
information.
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all the
wireless functions.
Service Set Identier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The
SSID is case-sensitive.
Indicates the channel setting for the DIR-300. By default
the channel is set to 6. The Channel can be changed to
t the channel setting for an existing wireless network or
to customize the wireless network. The Auto Channel
Selection setting can be selected to allow the DIR-300 to
choose the channel with the least amount of interference.
Use the drop-down menu to select the appropriate Transmission Rate in Mbits per second. Many users will want to use the
default setting, Best (automatic).
Enable Wi-Fi Multimedia to enjoy basic quality of service features. WMM prioritizes trafc according to four access categories:
voice, video, best effort, and background.
Check this option if you would not like the SSID of your wireless network to be broadcasted by the DIR-300. If this option is
checked, the SSID of the DIR-300 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID
of your DIR-300 in order to connect to it.
Wi-Fi
Protected
Setup:
Enable
Wireless
Channel:
Wireless
Network Name:
Transmission
Rate:
WMM Enable:
Enable
Wireless:
Enable Hidden
Wireless:
