28D-Link DIR-862L User Manual
Step 3: Internet Connection (Dynamic IP Address)

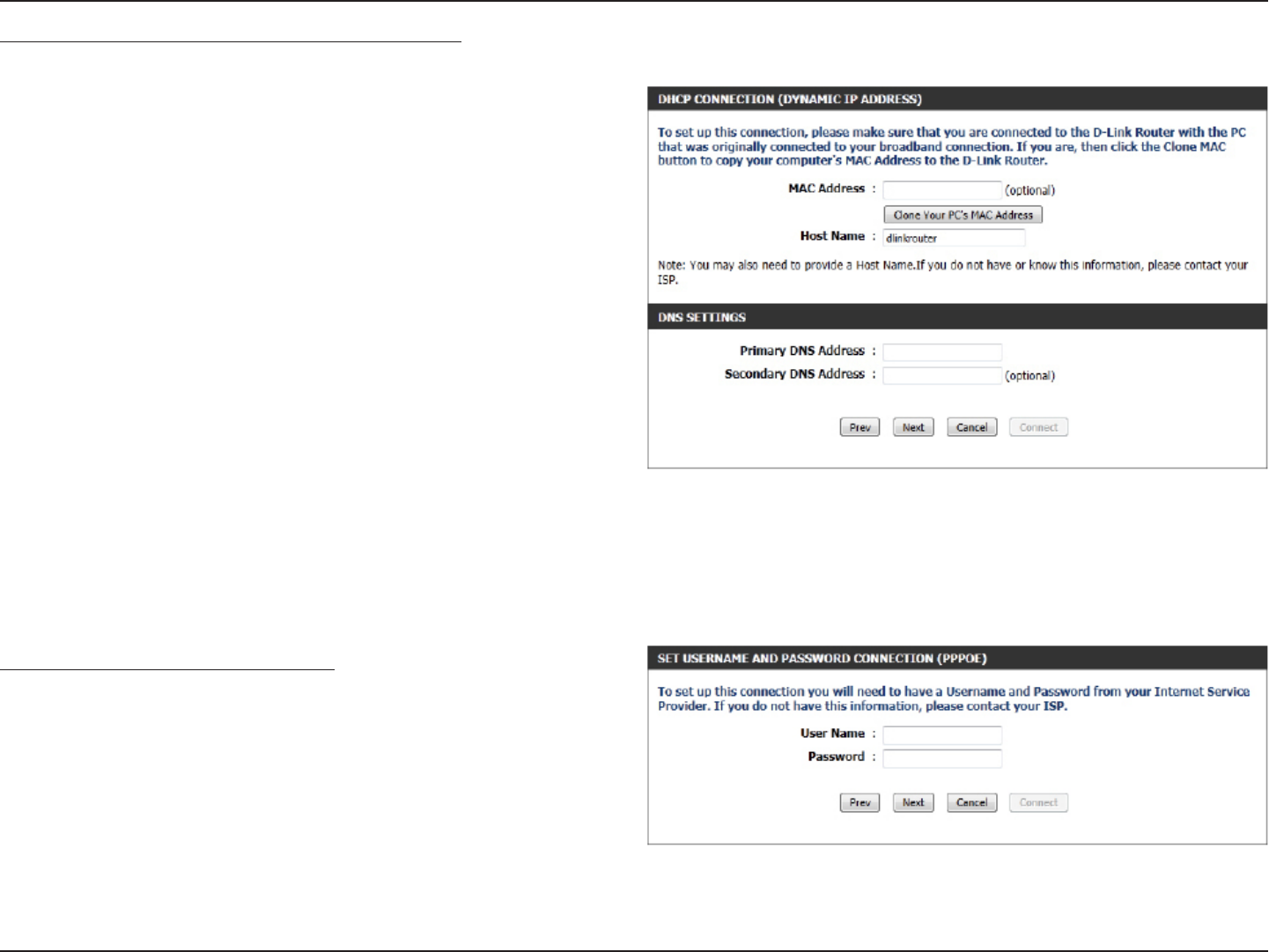

After selecting the Dynamic IP Address Internet connection method, the following page will appear.
The following parameters will be available for conguration:
MAC Address: Enter the MAC address of the Internet gate-
way (plugged into the Internet port of this
device) here.
Clone Button: If the conguration PC also acts as the Inter-
net gateway, then click on the Copy Your PC’s
MAC Address button to copy the PC’s MAC
address into the space provided. If you’re not
sure, leave the MAC Address eld blank.
Host Name: Enter the host name used here. You may also
need to provide a Host Name. If you do not
have or know this information, please contact
your ISP.
Primary DNS Address: Enter the Primary DNS IP address used here.
Secondary DNS Address: Enter the Secondary DNS IP address used
here. This eld is normally optional. Only
one DNS address is required for a functional
Internet connection, but using a second DNS
address provides more stability.
Click Next to continue.
Step 3: Internet Connection (PPPoE)
After selecting the PPPoE Internet connection method, the following
page will appear:
The following parameters will be available for conguration:
User Name: Enter the PPPoE account user name used here.
This information is given by the ISP.
Password: Enter the PPPoE account password used here.
This information is given by the ISP.
Click Next to continue.
