45D-Link DCS-7510 User Manual
Section 3 - Configuration
Enable Video
Motion:
Sensitivity:
Draw motion
area:
Erase motion
area:
Clear:
Select to turn on the motion detection feature of
your camera.
This setting adjusts how sensitive the camera
will be to motion, where 100% will be the most
sensitive setting and 0% will be the least sensitive
setting.
Select to draw motion detection area by dragging
your mouse in the window ( as indicated by the
red box).
Select to erase your motion detection area by
dragging your mouse in the window.
Click this button to clear all motion detection
areas.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard
your changes.

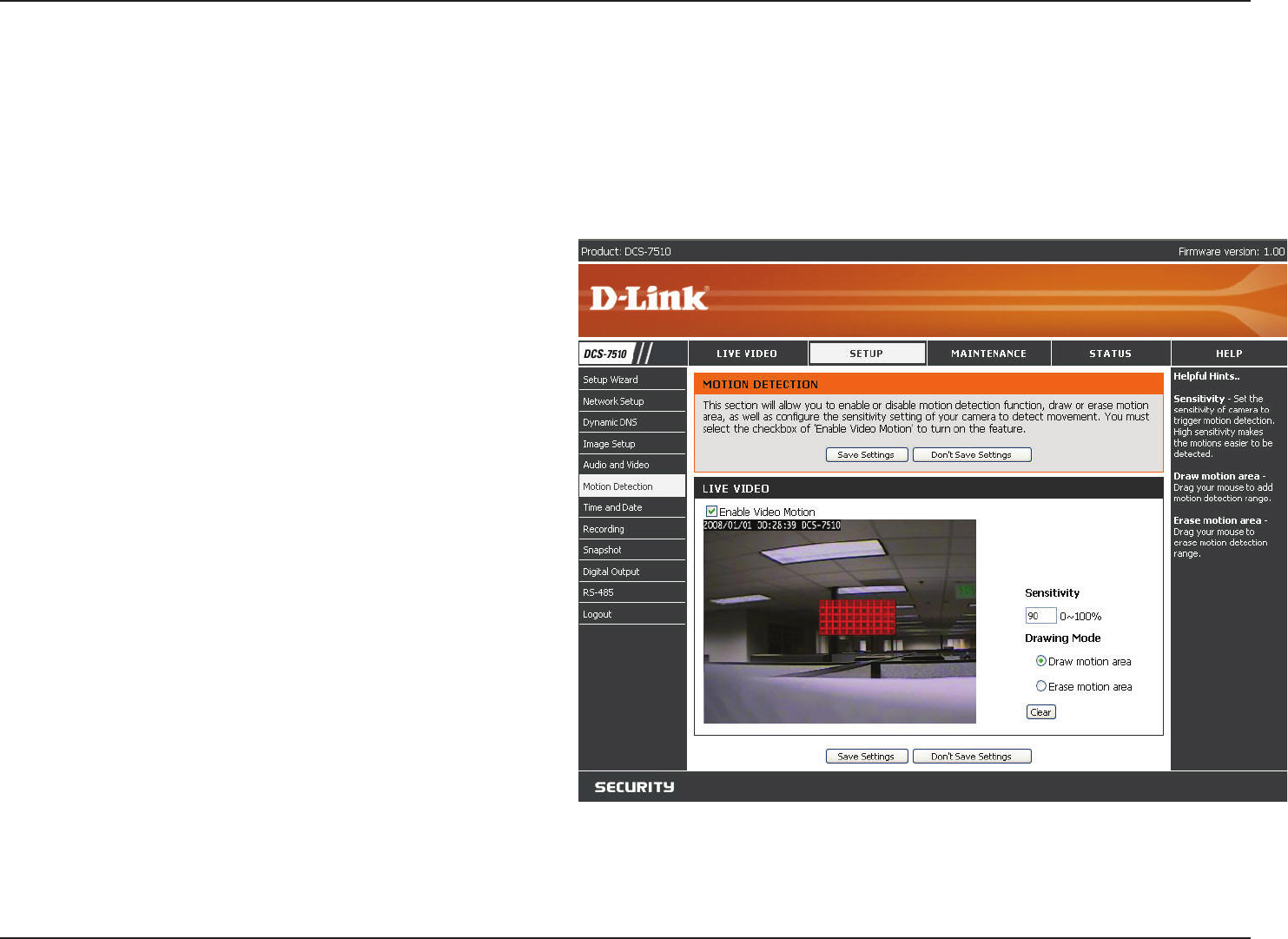

SETUP > Motion Detection
This option allows you to set up Motion Detection on your IP camera. In order to use motion detection, you must rst
check the Enable Video Motion checkbox. You can then click on the video window and draw motion detection zones
by clicking and dragging your mouse. Red areas indicate areas that will be monitored for motion.
