. For example, when the default
network address of the default IP address of the Web Smart Switch is
192.168.0.1, then the manager PC should be set at 192.168.0.x (where x
is a number between 2 and 254), and the default subnet mask is
255.255.255.0.

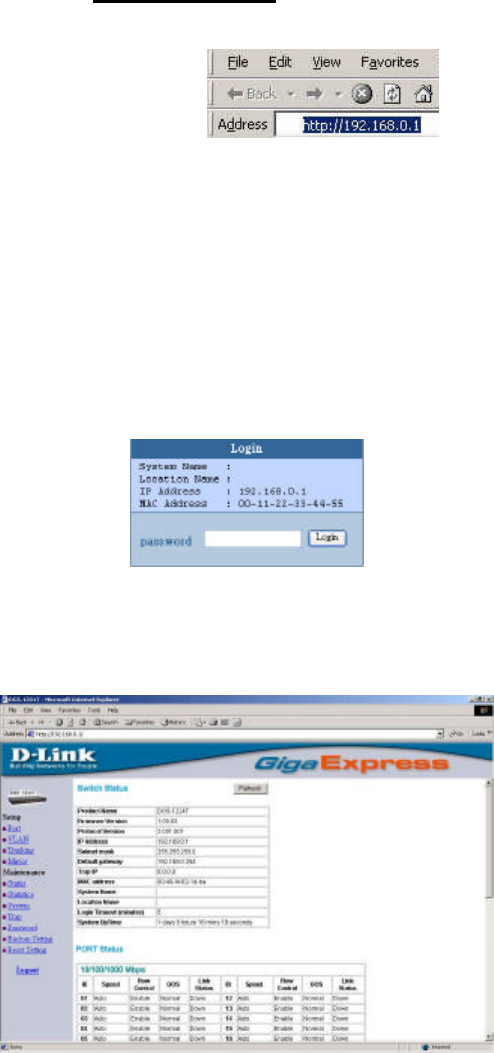

Enter IP address http://192.168.0.1 (the factory-default IP address
setting) to the address location. (Figure 2.)
Figure 2.
Or through the Web Management Utility, you do not need to remember
the IP Address, select the device shown in the Monitor List of the Web
Management Utility to settle the device on the Web Browser.
When the following dialog page appears, remain enter the default
password "admin" and press Login to enter the main configuration
window. (Figure 3.)
Figure 3.
After entering the password, the main page comes up, the screen will
display the device status. (Figure 4.)
Figure 4.
