1 Power Connector Connect the power adapter.
2 Video Connector This can be connected with the D-sub 15 pin signal
connector.
3 Touchscreen connector This is for connecting the touch panel RS232
connector. (optional)
2 3

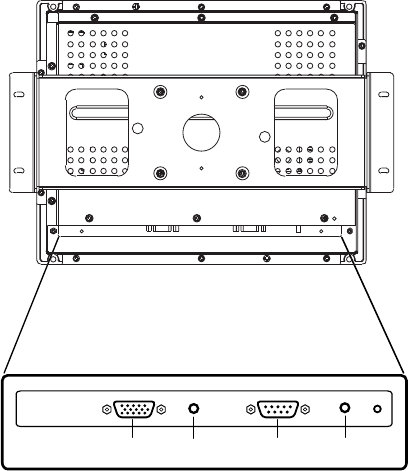

CONNECTIONS ON UNDERSIDE
4
1
4 OSD Remote connector Connect the remote function key.
