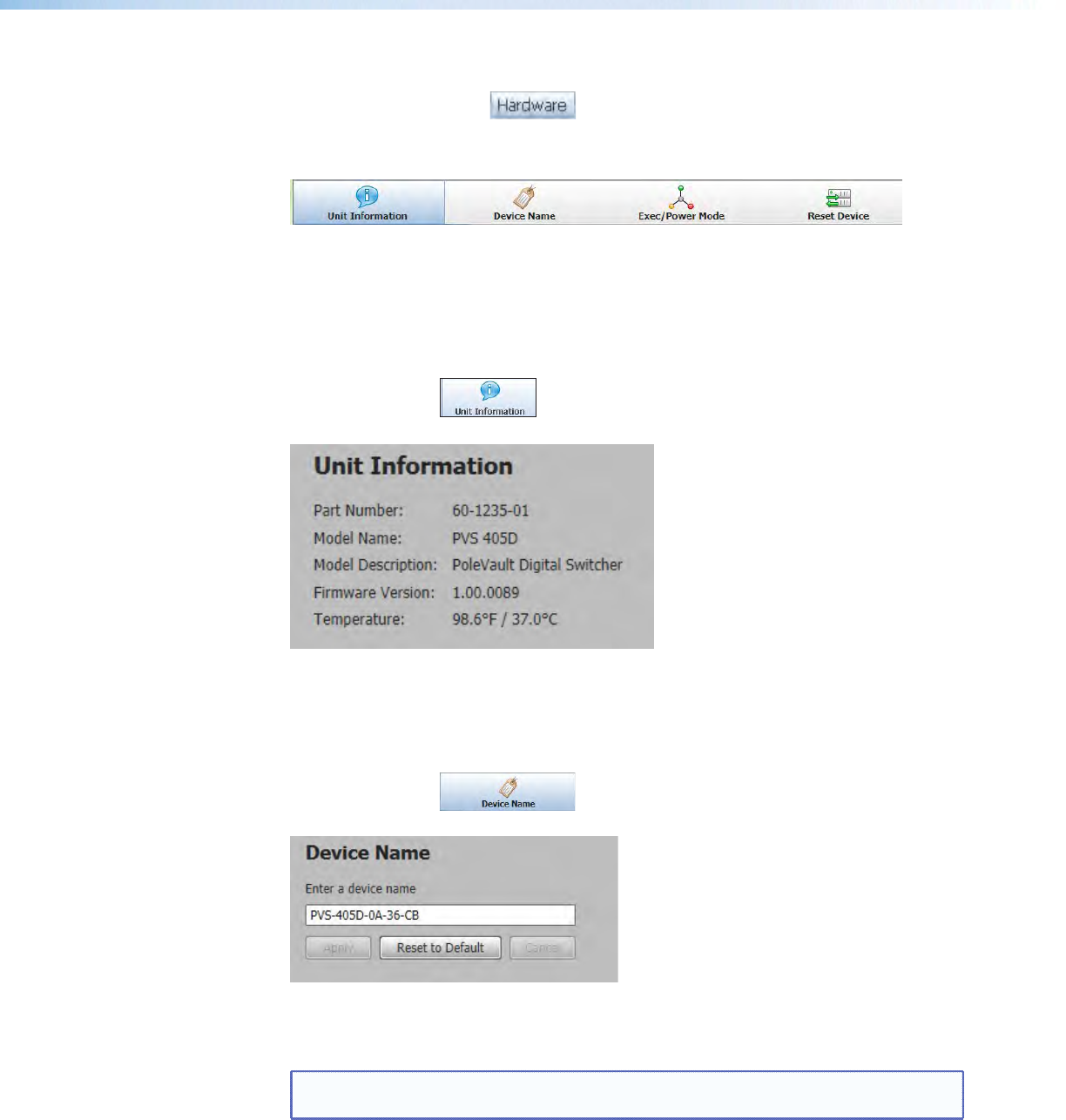

Hardware Pages
Click on the Hardware tab to open these pages.
The Hardware pages options are:
• Unit Information • Device Name • Executive/Power Mode • Reset Device
Figure 23. Global Navigation Bar for the Hardware Page
Unit Information Page
This page gives a non‑configurable view of information about the connected unit. These
include part number, model name and description, firmware version and build number.
Click on this button
to open the page.
Figure 24. Unit Information Page
Device Name Page
This page allows the user to enter a name for the device or reset it to the default.
Click on this button
to open the page.
Figure 25. Device Name Page
Assigning a Device Name
NOTE: The device name can only contain alpha‑numerical characters and dashes and
hyphens.
1. Click the Hardware button above the global navigation bar.
2. Click the Device Name icon on the global navigation bar. The Device Name screen
dialog box opens.
PVS 405D • Using Extron Product Configuration Software 42
