3.2 Mounting Requirements
C156-E227-01EN 3-7
Details on D part
Oblong hole: 2±0.1 (width)
× 2.5±0.1 (length)
(Width of C 0.5)
Details of C part
(Stroke for the switch)

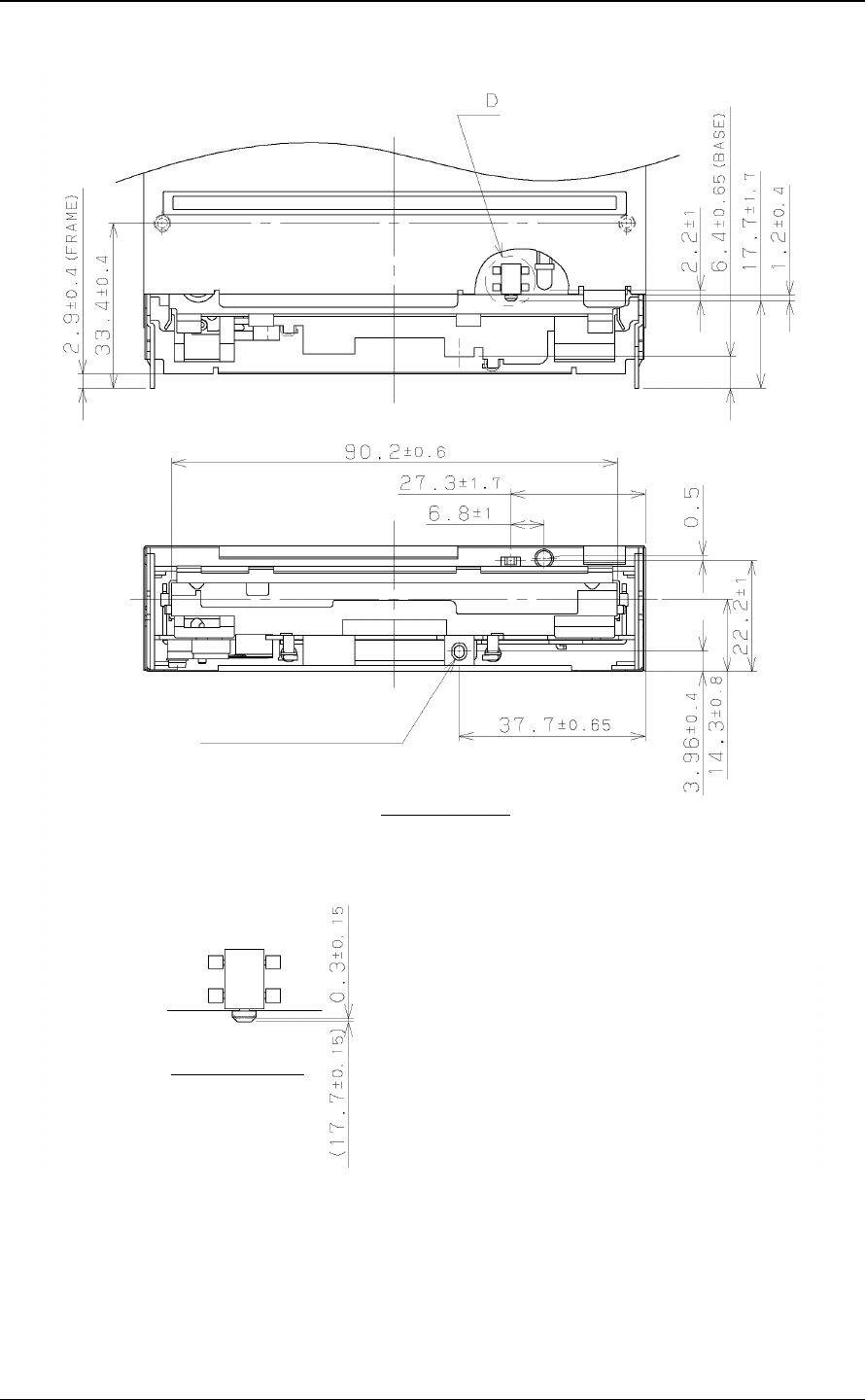

Figure 3.3 Outer dimensions (2/3)
