Installation Conditions
3.1 Dimensions

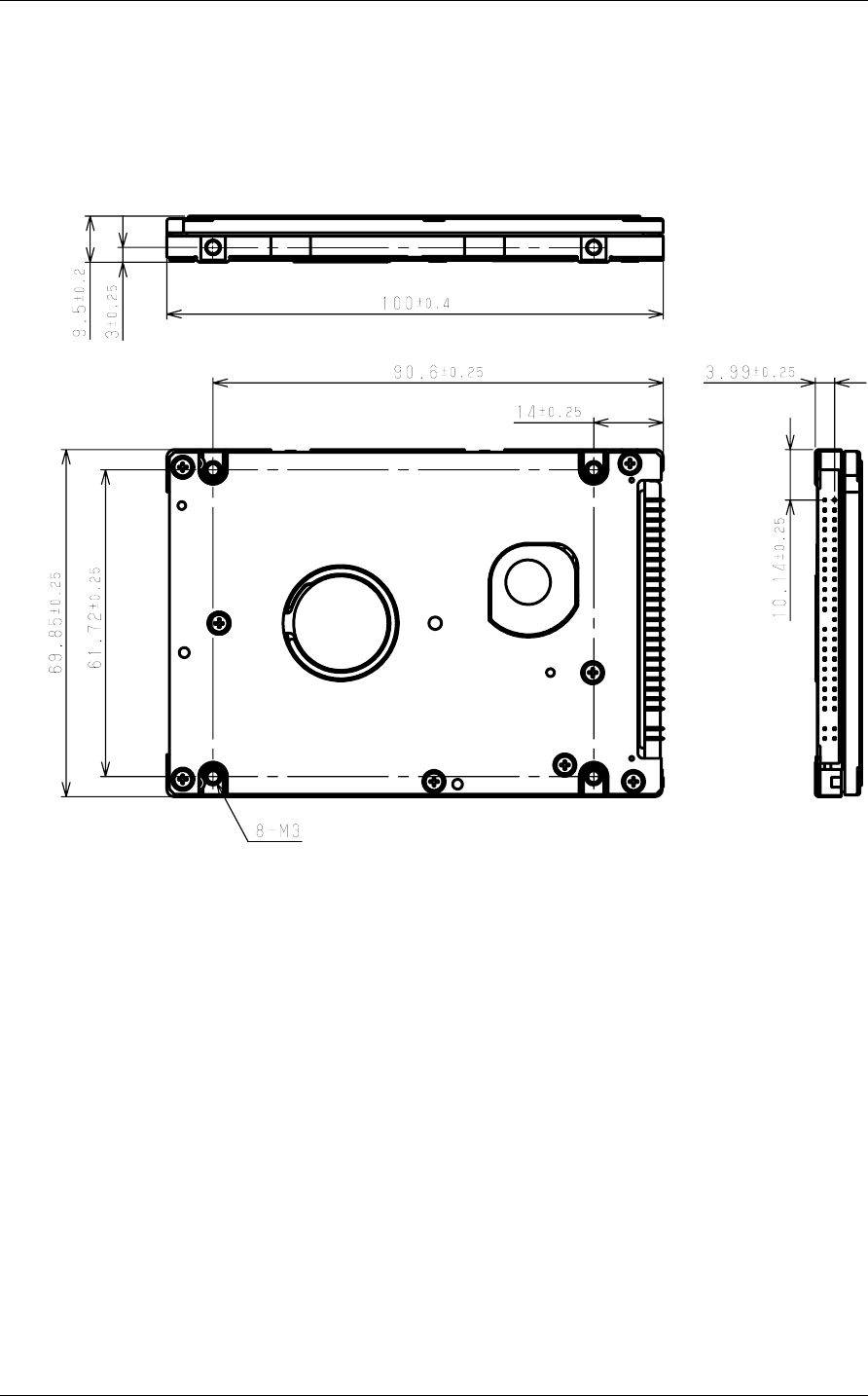

Figure 3.1 illustrates the dimensions of the disk drive and positions of the
mounting screw holes. All dimensions are in mm.
Figure 3.1 Dimensions
3-2 C141-E258
