50 Replacing and Adding Internal Devices

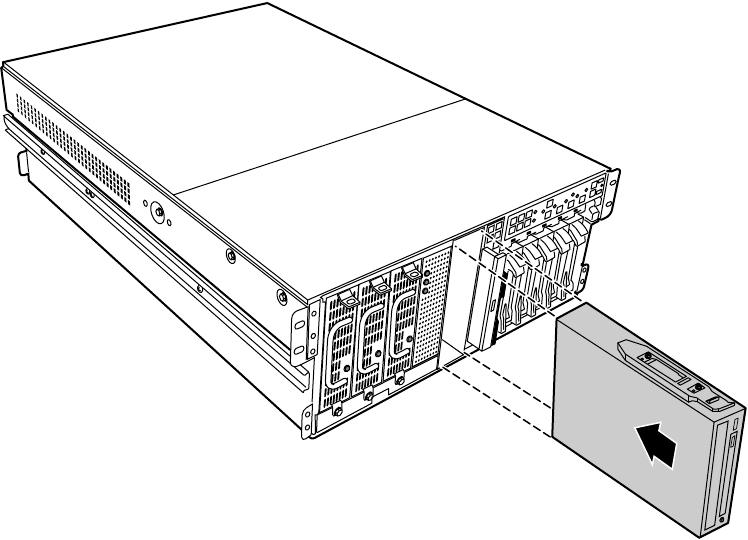

6 Align the drive rails with the grooves at the top and bottom of the
5.25-inch drive bay and slide the device into the bay until the rails click
into place.
7 Connect power and data cables to the device, making sure the cables are
oriented correctly.
8 Close the case. (See “Closing the case” on page 31.)
9 Reconnect the power cord and all other external peripheral devices, then
turn on the server.
Replacing a 5.25-inch device
The chassis supports a single half-height 5.25-inch device. The 5.25-inch drive
bay is in the center of the front panel. If you remove a device from the
5.25-inch drive bay, you must either install a replacement device or install
the metal EMI shield that originally shipped with the server.
