Setup One Tab

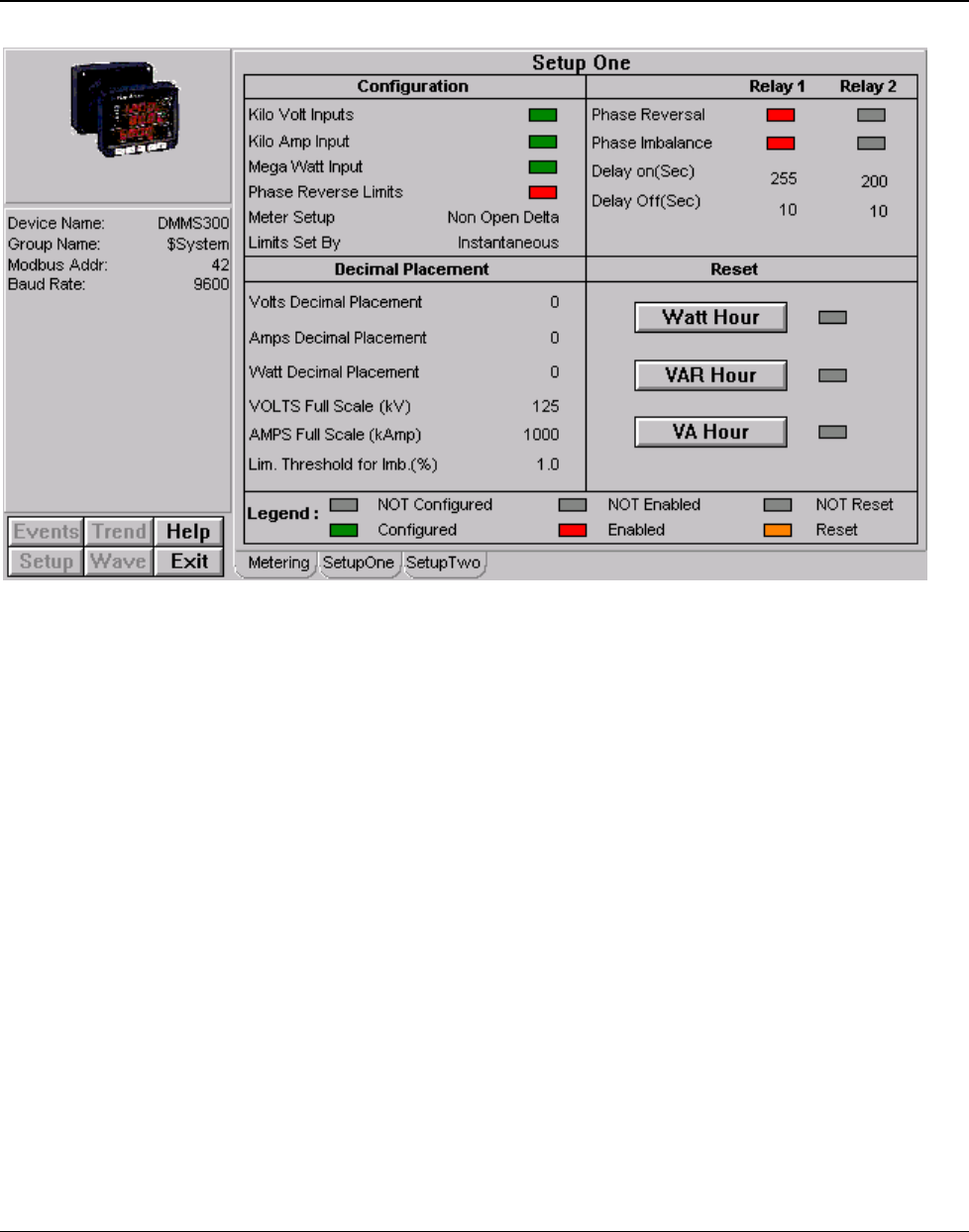

The screen explains various parameters in relation with Relay 1 and Relay 2 such as:
Configuration
Kilo Volt Inputs
Kilo Amp Input
Mega Watt Input
Phase Reverse Limits
Meter Setup
Limits Set By
Relay 1 / Relay 2
Phase Reversal
Phase Imbalance
Delay On
Delay Off
Decimal Placement
Volts Decimal Placement
Amps Decimal Placement
WATT Decimal Placement
VOLTS Full Scale
AMPS Full Scale
Lim. Threshold for lmb (%)
