2. Remove the slot cover (if installed).
CAUTION:
Properly ground yourself before handling the switch.
3. Press the handle latch to release the installation handle. See Figure 4.
scale: 2/3" = 1"
21
22
23
17
18
19
20
!
Reset
26475a
2
3
1

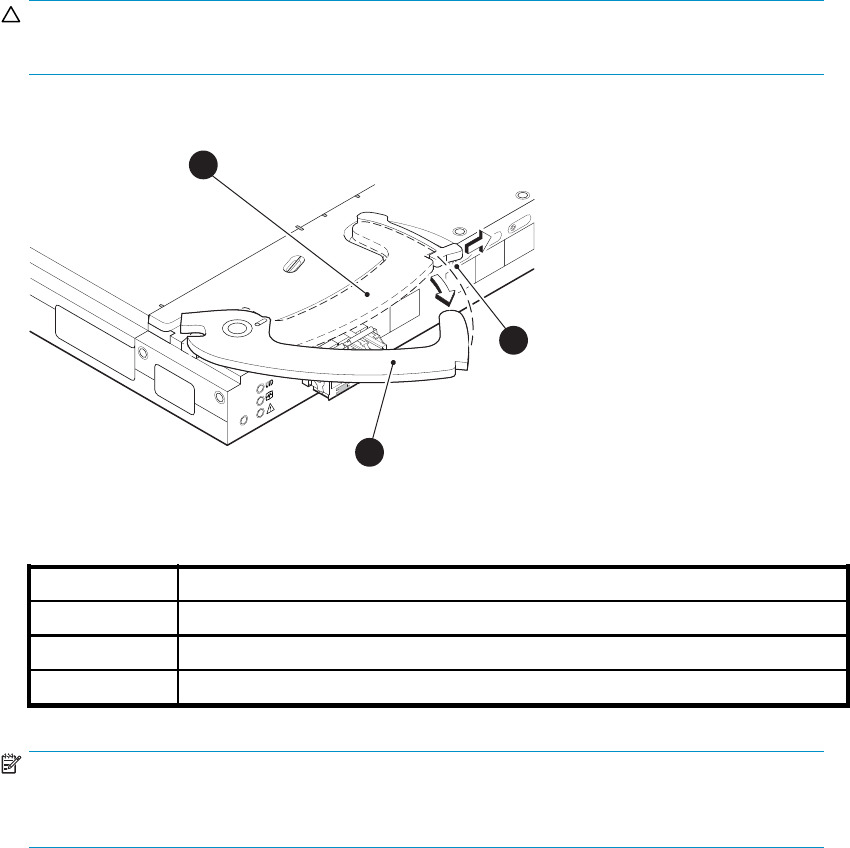

Figure 4 Releasing the installation handle
Table 9 Release mechanism components
Item
Description
1
Installation handle in latched position
2
Handle latch
3
Installation handle (released)
NOTE:
The Brocade 8Gb SAN Switch is a hot-pluggable device. The enclosure power may be on
or off during installation.
4. Align the
Brocade 8Gb SAN Switch with the appropriate interconnect bay according to your
enclosur
e’s spec icconguration. Push the switch rmly into the interconnect bay. See Figure 5.
