6
Setup
Before using your monitor, check that the following accessories
are included in your carton:
• Power cord (2)
• Video signal cable (1)
• USB cable (1)
• Notes on cleaning the screen’s surface (1)
• This instruction manual (1)
Step 1:Connect your monitor to
your computer
Turn off the monitor and computer before connecting.
Notes
• Do not touch the pins of the video signal cable connector as this might
bend the pins.
• When connecting the video signal cable, check the alignment of the
connector. Do not force the connector in the wrong way or the pins
might bend.
x
xx
x

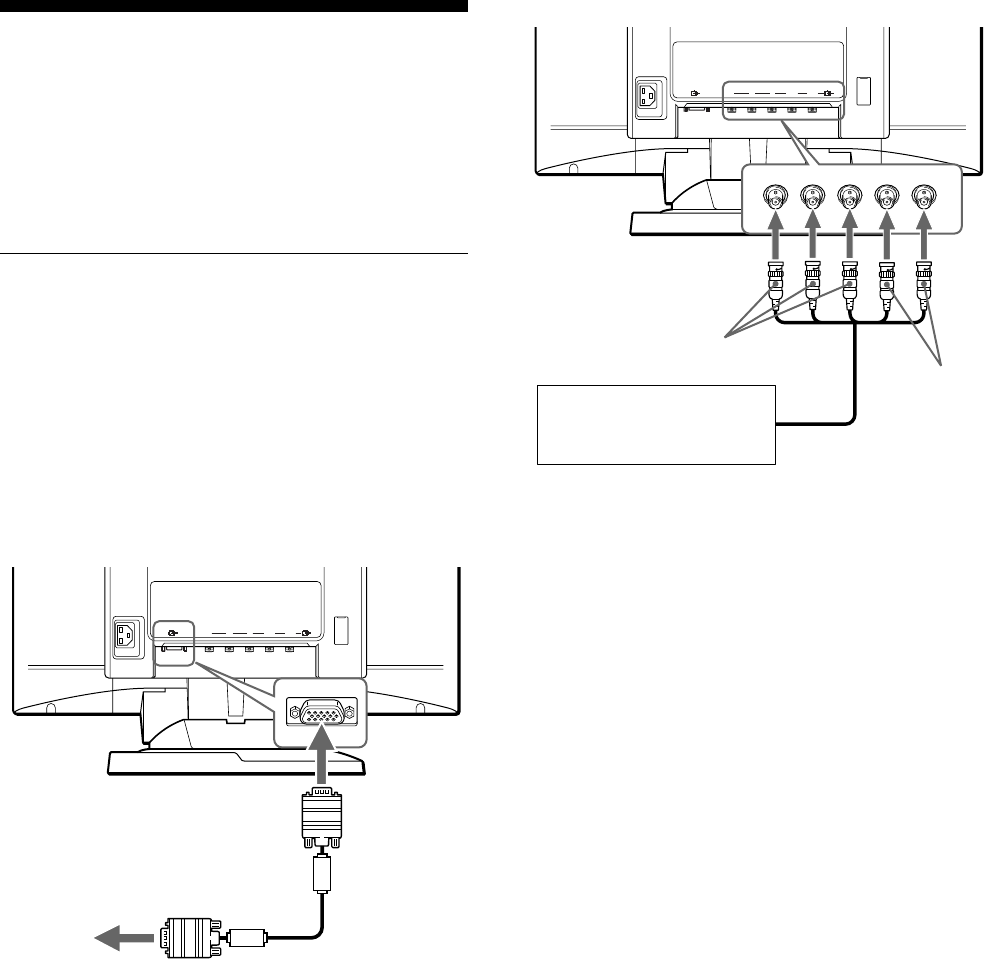

Connecting to the HD15 connector
x
xx
x
Connecting to the five BNC connectors
* Connect the cables from left to right in the following order: Red-Green-
Blue-HD-VD.
Note
Plug & Play (DDC) does not apply to the five BNC connectors. If you
want to use Plug & Play, connect your computer to the connector using
the supplied video signal cable.
C N
BHDD
1
video signal cable
(supplied)
to a computer with
an HD15 video output
to HD15 input
to R/G/B input
to HD/VD
input
Refer to the preceding
examples to connect to your
computer. video signal cable
(SMF-400, not supplied)
*
