Introduction 7
Reference number Component Function
4 OSD activation button Launches OSD menus
Selects
Exits menus and OSD
5 Scroll lock LED
6 Cap lock LED
7 Number lock LED
8 Touchpad
9 Left pick button
10 Middle pick button
11 Right pick button
12 Scroll bar
13 USB pass thru
Pass thru to the rear USB
port (callout 1 in the
following figure)

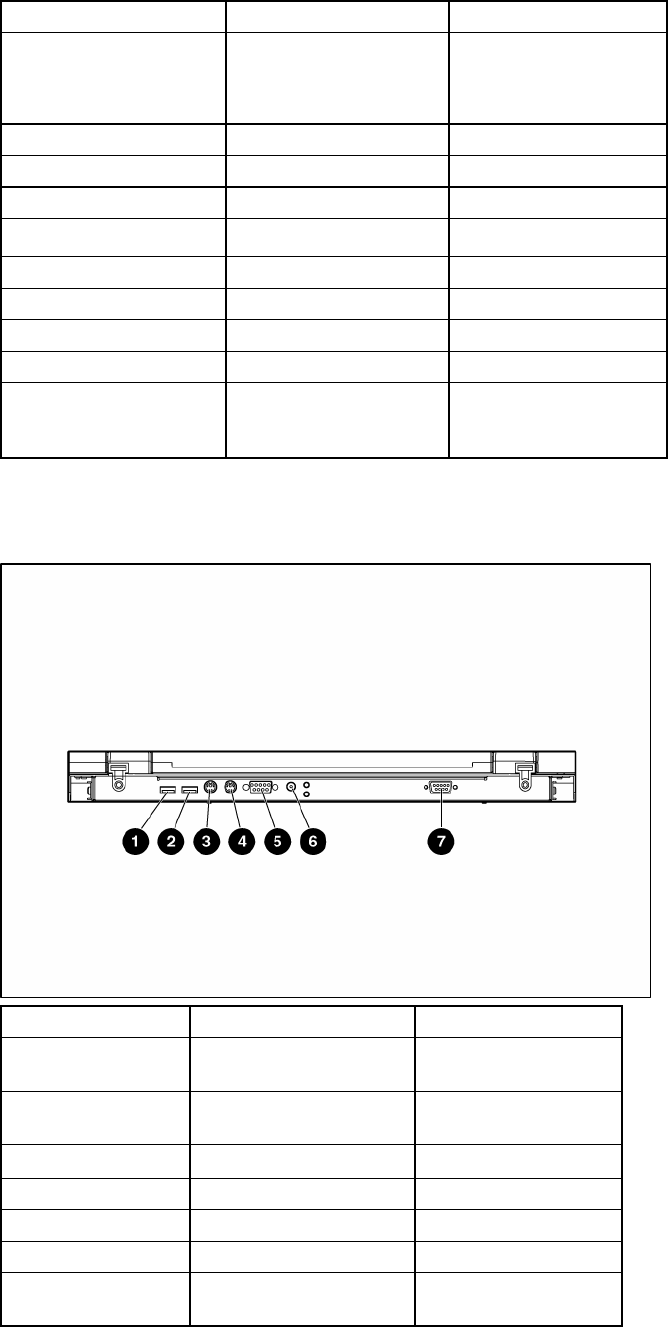

Rear components
Reference number Component Function
1 USB pass thru
Connects to a KVM
switch virtual media port
2
USB Keyboard/Mouse
connector
3 PS2 Keyboard connector
4 PS2 Mouse connector
5 VGA input connector
6 Power connection
7 Serial firmware port
Enables user to update
TFT7600 firmware
