Your HDMI Line Transmitter / Receiver
6
Top Side Panel
Lower Side Panel

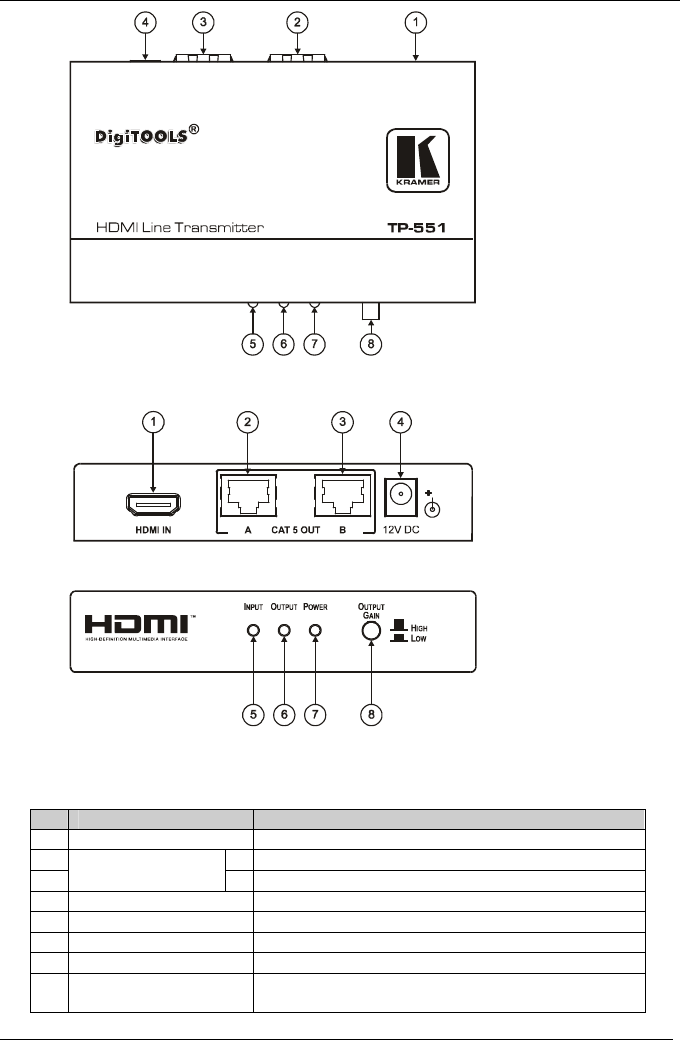

Figure 1: TP-551 HDMI Line Transmitter
Top Side Panel
Lower Side Panel
Figure 2: TP-551 (Top Side and Lower Side Panels)
Table 1: TP-551 HDMI Line Transmitter Features
# Feature Function
1 HDMI IN Connector Connect to the HDMI source
2 A
Connect to the CAT 5 IN A RJ-45 connector on the TP-552
3
CAT 5 OUT RJ-45
Connector
B
Connect to the CAT 5 IN B RJ-45 connector on the TP-552
4 12V DC +12V DC connector for powering the unit
5 INPUT LED Lights when an input is connected
6 OUTPUT LED Lights when an output is detected
7 POWER LED Lights when receiving power
8 OUTPUT GAIN
(HIGH/LOW) Pushbutton
Press to select low output gain (for short cable lengths)
Release to select high output gain (for long cable lengths)
