Connections
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.
Connecting a Personal Computer
Connecting your computer to your LCD monitor will enable you to display your computer’s screen image.
Some video cards and a pixel clock over 162MHz may not display an image correctly.
Your LCD monitor displays proper image by adjusting the factory preset timing signal automatically.
<Factory preset signal timing>

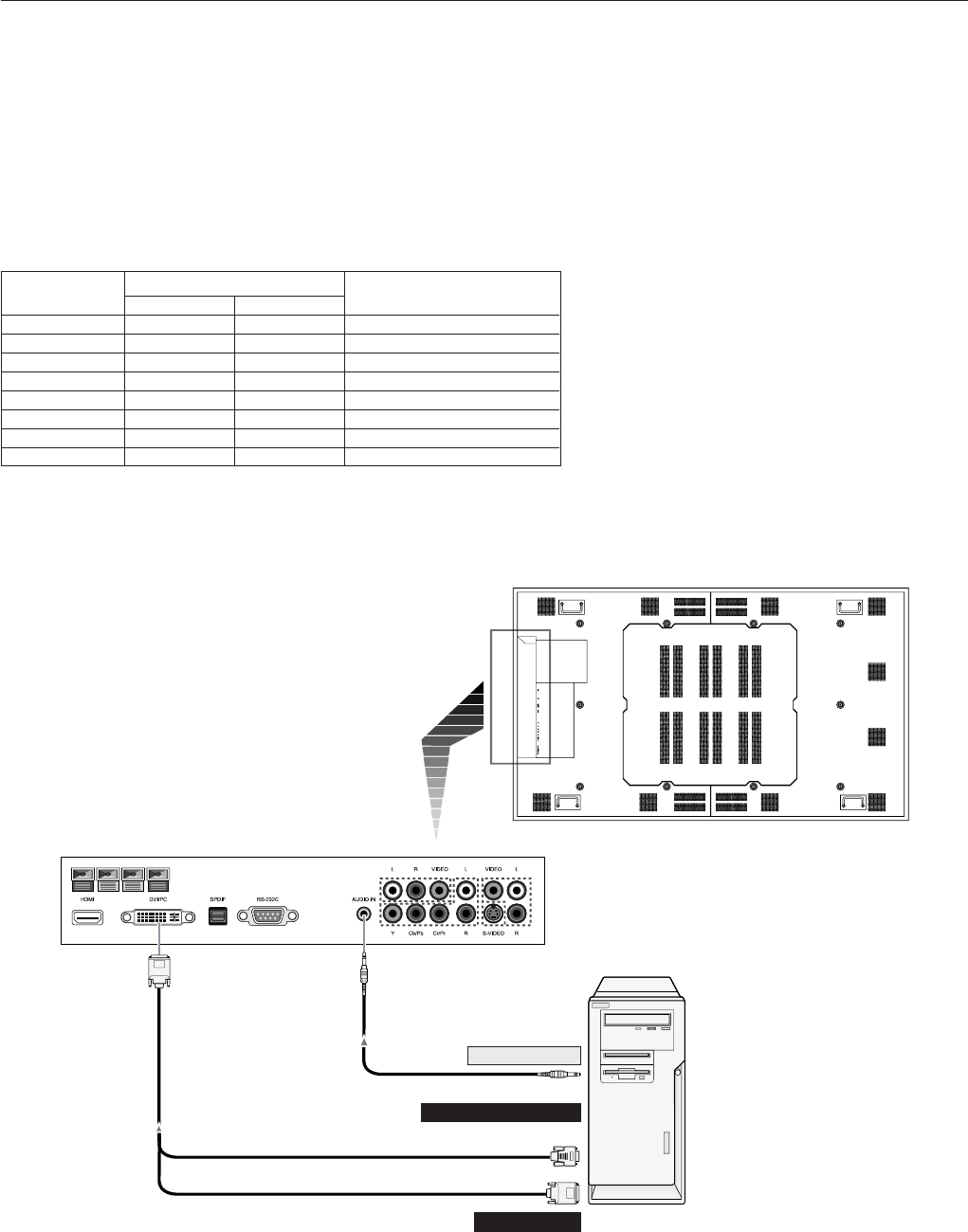

Connect the LCD Monitor to a Personal Computer
To connect the DVI IN connector on the LCD monitor, use the supplied PC - Video RGB signal cable (DVI-D to DVI-D,
DVI-A to mini D-sub 15 pin).
LCD monitor
Personal
Computer
Mini D-sub 15 pin
DVI-A/DVI-D
To analog RGB output
To audio output
Horizontal Vertical
640 x 480 31.5kHz 60Hz
800 x 600 37.9kHz 60Hz
1024 x 768 48.4kHz 60Hz
1280 x 768 48kHz 60Hz
1360 x 768 48kHz 60Hz
1280 x 1024 64kHz 60Hz
1600 x 1200 75kHz 60Hz Compressed image
1920 x 1080 66.6kHz 60Hz Recommended resolution
Resolution Remarks
Scanning frequency
DVI-D connector
To DVI output
