11-10 Install
MA4000 Installation Manager User Guide - Revision 6

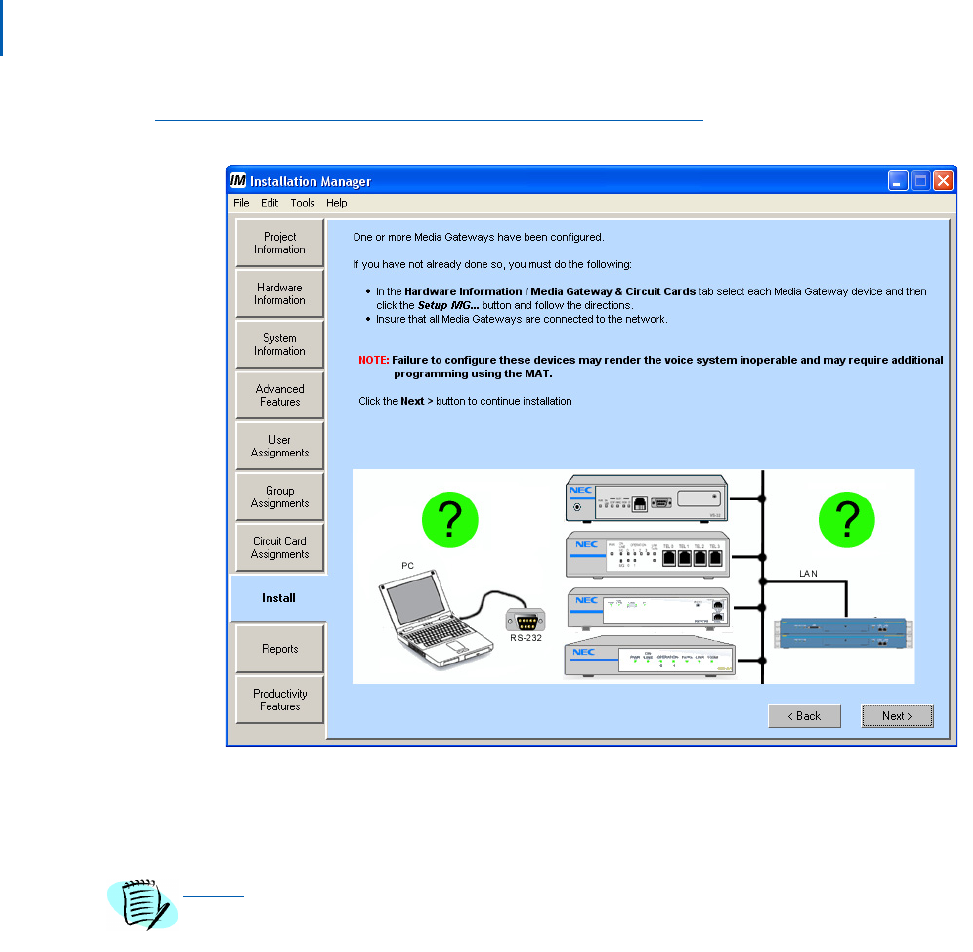

Figure 11-11
Media Gateway Setup
Step 13 Ensure each Media Gateway has been configured and connected to the
network, then select the Next button. Figure 11-12 displays.
NOTE
The Media Gateway Setup dialog box will not display if there is no Media Gateway
circuit card inserted.
