Flexible Arm Installation
This LCD monitor is designed for use with a fl exible arm. To mount the
monitor to a fl exible arm:
1. Follow the instructions on how to Remove Monitor Stand for Mounting
to remove the stand.
2. Use the 4 screws to attach the arm to the monitor (Figure F.1).
NOTE: The LCD monitor should only be used with an approved arm
(e.g. GS mark). To meet the safety requirements, the monitor must be
mounted to an arm which guaranties the necessary stability under
consideration of the weight of the monitor.
Thickness of Bracket (Arm)
2.0~3.2mm
100mm
100mm
4 Screws (4M)
(Max Depth: 14 mm)

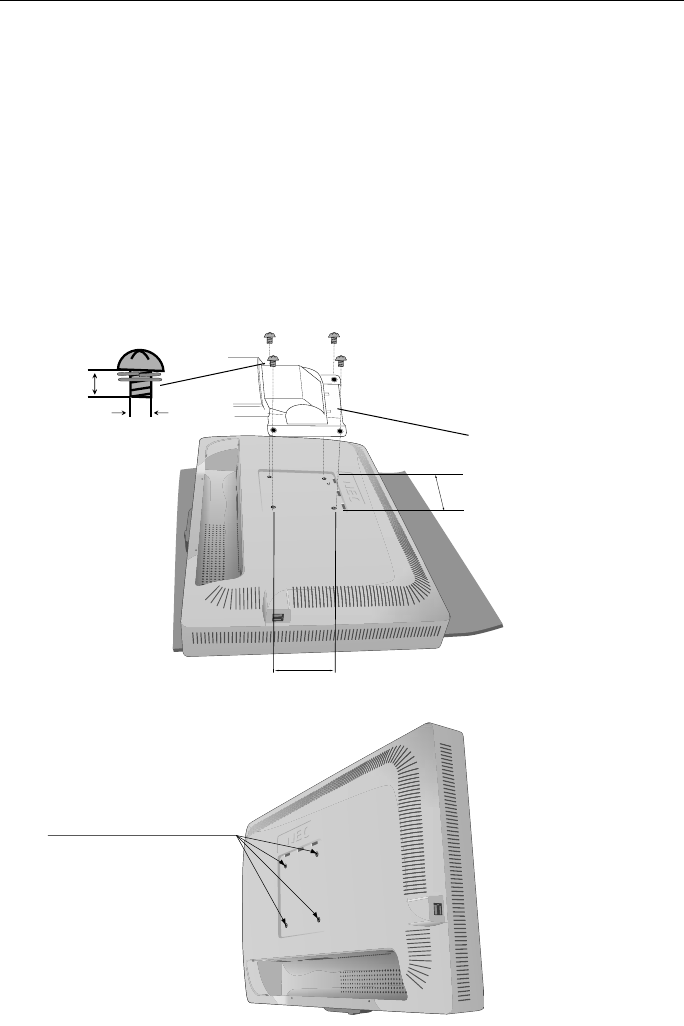

Figure F.1
Weight of LCD assembly:
LCD2470WNX: 8.3kg MAX
LCD2470WVX: 8.3kg MAX
12mm
M4
4 x 12mm with lock
washer and fl at washer
(Pictured: LCD2470WNX)
