Attaching Mounting Accessories
The display is designed for use with the VESA mounting
system.
1. Attach Mounting Accessories
Be careful to avoid tipping monitor when attaching
accessories.
LCD4020/LCD4620
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the screen face,
place the protective sheet on the table underneath the LCD.
The protective sheet was wrapped around the LCD in the
original packaging. Make sure there is nothing on the table
that can damage the monitor.
When using mounting accessories other than NEC
compliant and approved, they must comply with the VESA-
compatible mounting method.

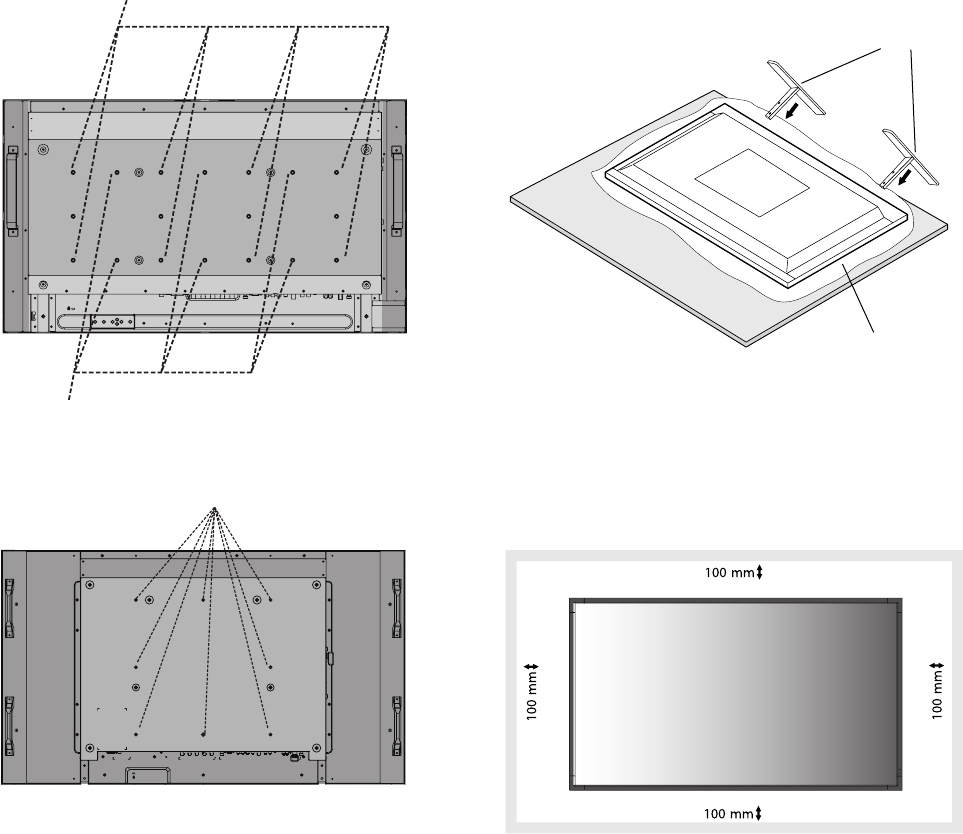

Figure 1
VESA Mounting Interface
2. Installing and removing optional table
top stand
CAUTION: Installing and removing the stand must be done
by four or more people (LCD5220), by two or
more people (LCD4020/LCD4620).
To install, follow those instructions included with the stand or
mounting apparatus. Use only those devices recommended
by the manufacturer.
Handle with care when mounting LCD monitor stand and
avoid pinching your fingers.
Using 8 holes
Using 6 holes
LCD5220
NOTE: Place stand onto monitor so that the long end of the
feet are in the front.
3. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the
enclosure to allow heat to disperse, as shown below.
Optional table top stand
Table
Protective Sheet
