IBM XGA/SuperVGA/VGA or Compatibles
or Macintosh G3 series
Installation

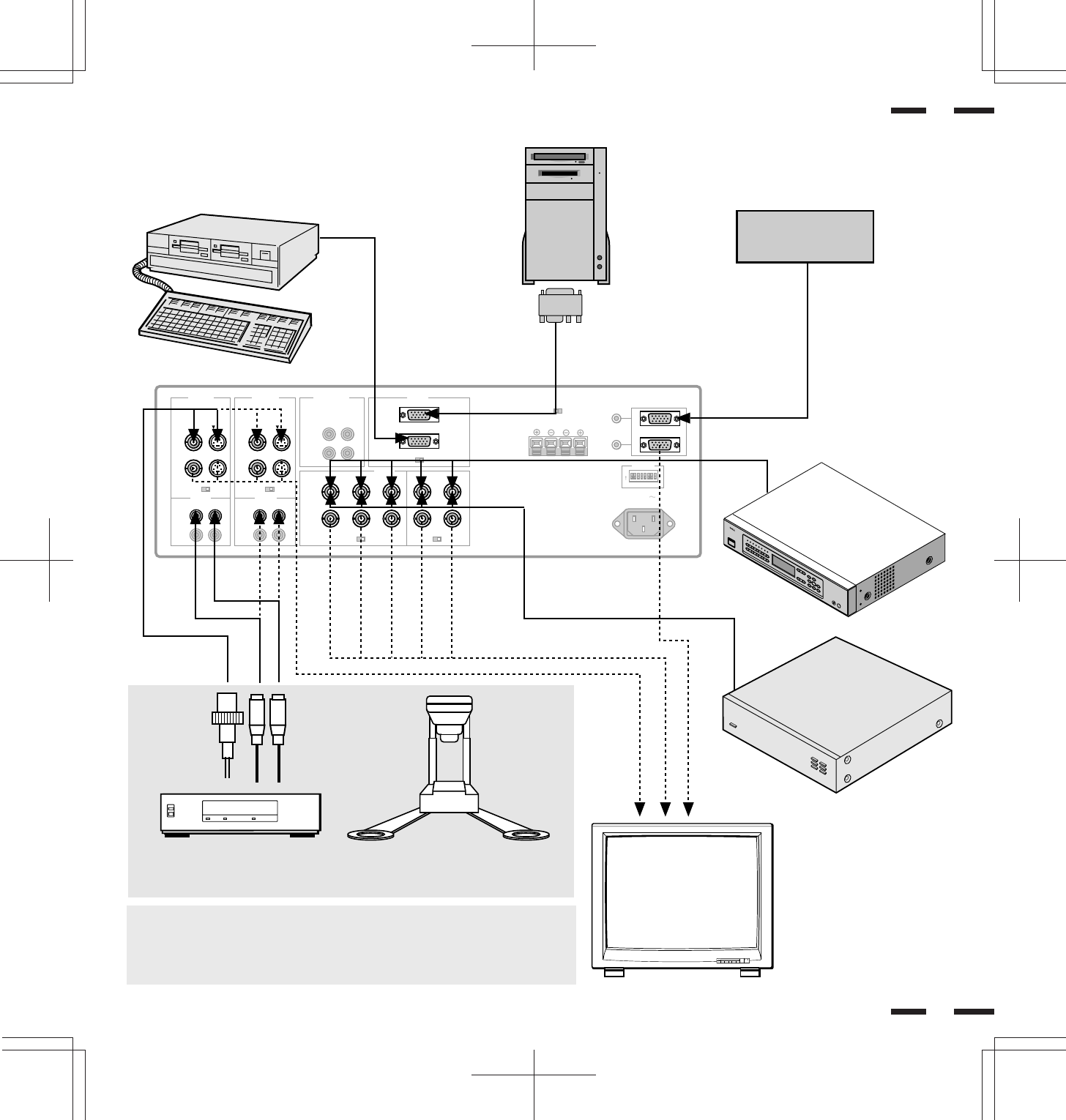

Wiring Diagram
To Mini D-SUB 15 Pin input
To R,G,B,H/CS, V inputs (BNC)
To EXTERNAL CONTROL
(Mini D-SUB 15 Pin input)
NEC IPS 4000
Image Processo
XP37 Xtra/XM37 Xtra
Macintosh or
Compatibles
RGB cable (Supplied)
NOTE: The two D-Sub 15-pin RGB 1 connectors here can be used to either input or
output video to or from a PC or Macintosh computer. Either connector can be used for
input or output, however they cannot both be used for input simultaneously. It can
damage your computer.
Document camera, VCR, Video copy stand
or Multimedia application
XP37Xtra/XM37Xtra
To VIDEO IN R, L, inputs
To Mini D-SUB 15 Pin input
RGB cable (Supplied)
Pin adapter for Macintosh
(supplied)
DTV Tunerr
or
DVD Player
To Y/CB/CR, Y/PB/PR inputs (BNC)
