NEC Versa M540/PB EasyNote R7 Disassembly Manual
Page 9
Removing the WLAN Module and MDC Modem Module
To remove the WLAN Module and MDC modem Module, first remove the Battery (see
Removing the Battery) then perform the following steps:

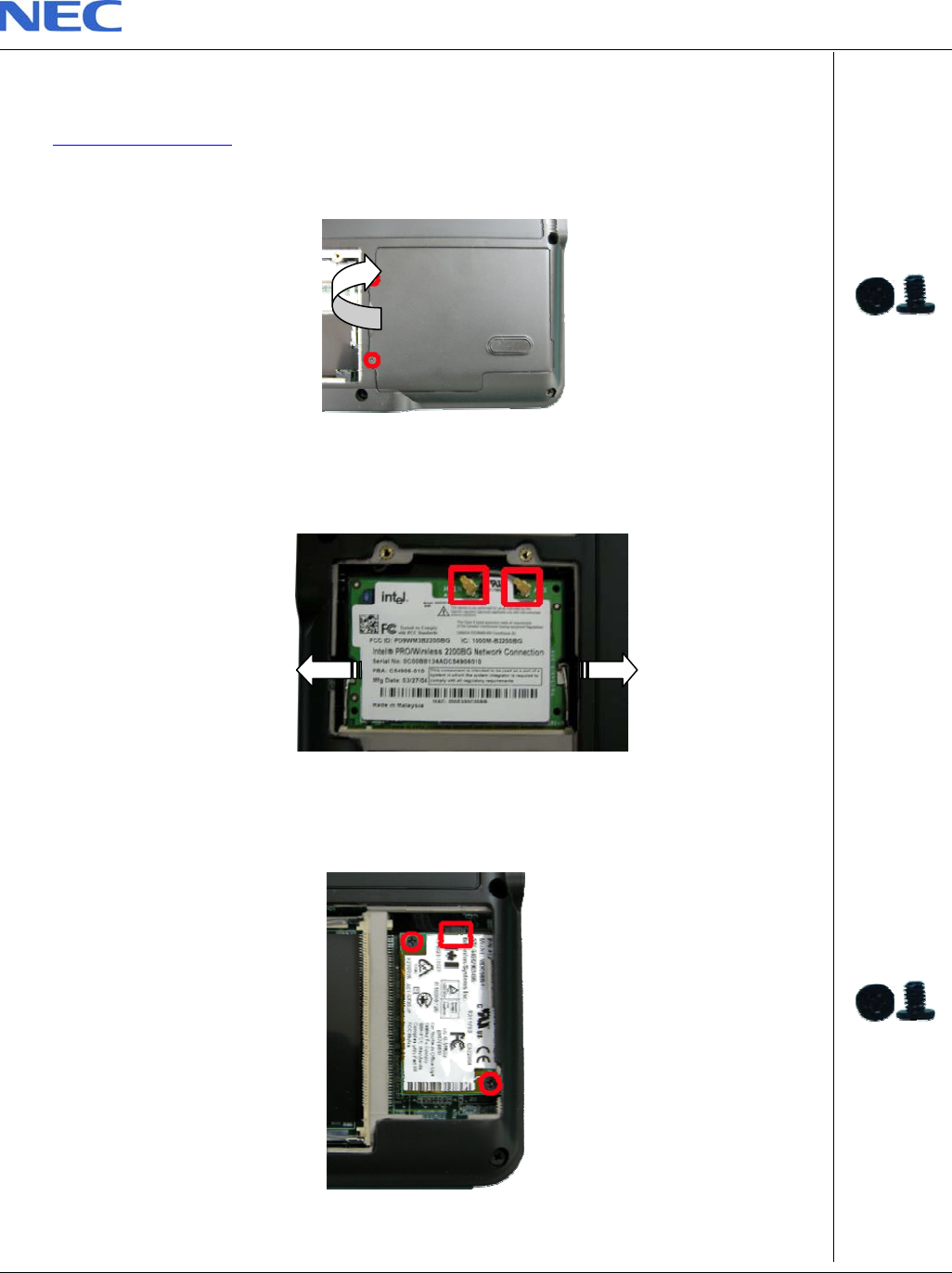

1. Release the screws retaining the WLAN/MDC cover.
Fig. 9 Removing WLAN/MDC cover
2. Disconnect Wireless Antenna and unclip the memory module as shown in Fig. 10
Fig. 10 Removing the WLAN module
3. Unscrew MDC modem and disconnect the MDC modem cable before remove it.
Fig. 11 Removing the MDC Modem module
M2x3.5 Black
M2x3.5 Black
