Mainboard nForce 680i SLI/

Mainboard nForce 680i LT SLI

39

Creating a New Array

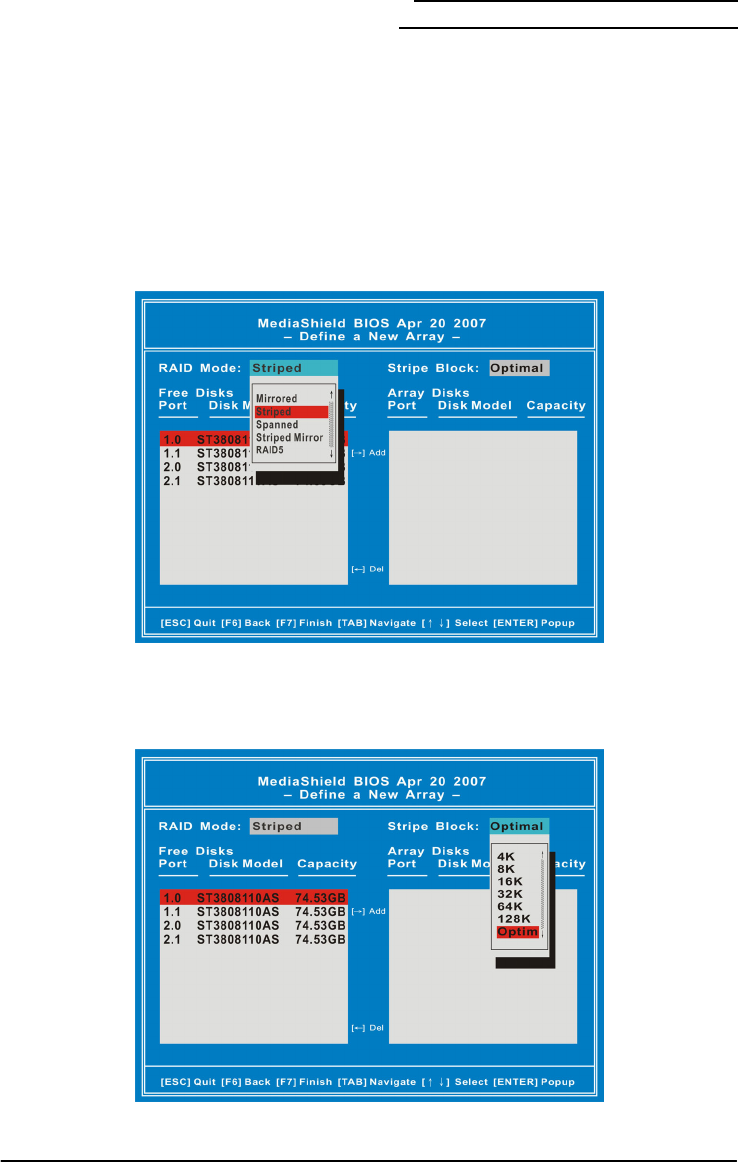

1. The screen you will see upon initial configuration is the “Define a New Array” screen.

<Tab> over to the “RAID Mode” item and press <Enter>. According to your configuration

requirements, select “Mirrored” (RAID 1), “Striped” (RAID 0), “Striped Mirror“ (RAID 0+1),

“Spanned” (JBOD), or “RAID 5” in the drop-down menu. Then hit <Enter>. The example

here is “RAID 0 (Striped)”.

2. Next, <Tab> over to the “Stripe Block” item and press <Enter>. You can select the stripe

block size for your array which will affect performance. It’s recommended that you select

“Optimal”. Press <Enter>.
