Accessories / Options
9
Assembly screw
(5) (50” class)
(1) (55” / 60” / 65” class)
(black)
M4 × 10
Bracket
TBL5ZA3254
(50” class)
TBL5ZA3200
(55” / 60” / 65” class)
Cover
TXFBL5Z0091
(50” class)
TXFBL5Z0056
(55” / 60” / 65” class)
Base
TBL5ZX0313
(50” class)
TBL5ZX0328
(55” class)
TBL5ZX0379
(60” class)
TBL5ZX0381
(65” class)
Assembly screw
(7) (50” class)
(12) (55” / 60” / 65” class)
(silver)
M5 × 16
Neck
TXFBL5Z0083
(50” class)
TXFBL5Z0086
(55” / 60” / 65” class)

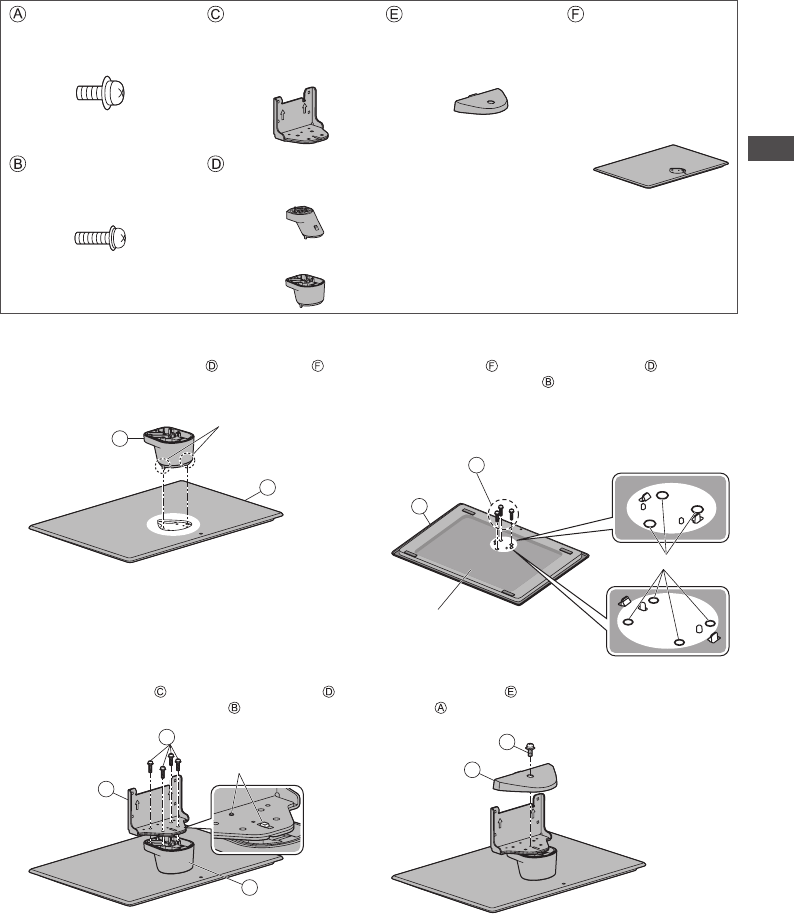

Assembling the pedestal
1
Insert the tabs of the neck into the base
firmly
2
Turn the base over and fix the neck securely
with assembly screws
Do not hold the neck when turning over the base.
B
F
Back of the base
Screw hole
50” class
55” / 60” / 65” class
(3) (50” class)
(4) ( 55” / 60” / 65” class)
F
D
Tabs (bottom)
3
Attach the bracket to the tabs of the neck
and fix with assembly screws
4
Attach the cover and fix securely with assembly
screw
B
C
D
Tabs (top)
E
