GT-805A Installation
Step 1: Connect the ber cable. Attach the duplex LC
connector on the network cable into the SFP
transceiver.
Step 2: Attach ber cable from the GT-805A to the ber
network. TX, RX must be paired at both ends.
Step 3: Connect the 5VDC power adapter to the GT-805A
and verify that the Power LED lights up.
Step 7: Turn on the power of the device/station; the PWR
LEDs should light when all cables are attached.

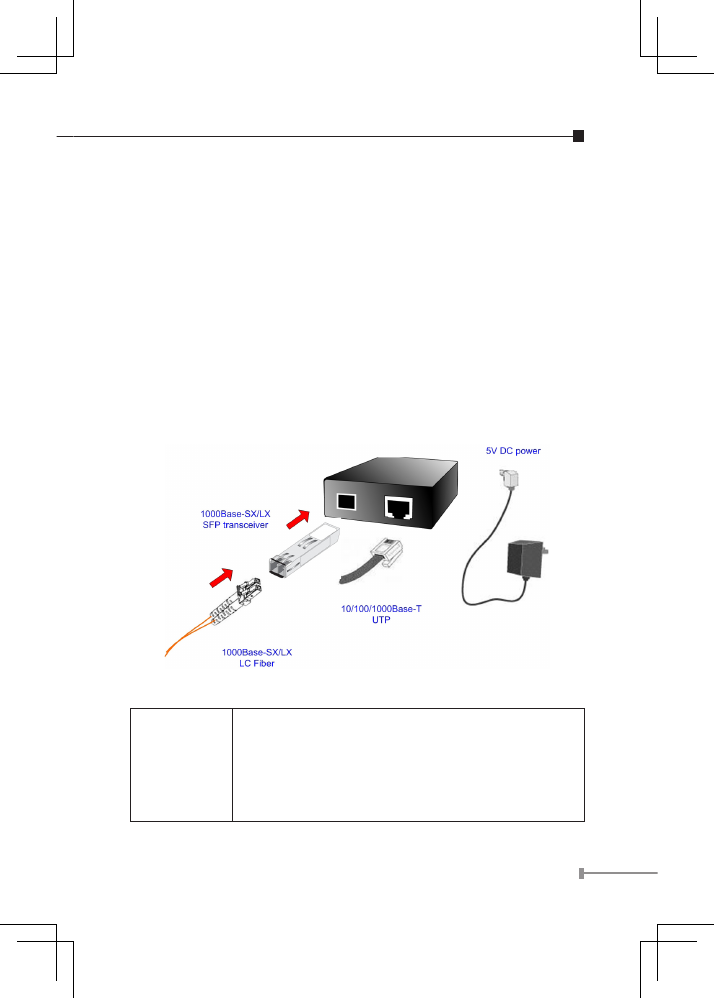

Figure 6-2 GT-805A installation
Notice:
It recommends using PLANET MGB-SX /
MGB-LX series 1000Base-SX/LX SFP on the
converter. If you insert a SFP transceiver
that is not supported, the converter will
not recognize it.
