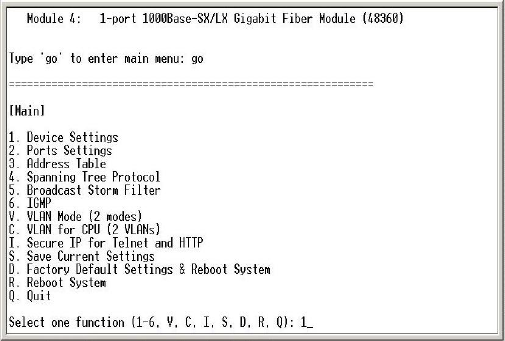

3.3 Main Menu
The main menu displays all the sub-menus that are available. Striking Enter, at a highlighted
option, will confirm the choice of the specified sub-menu. There are thirteen menu items to
choose from:
Ø Device Settings
Ø Port settings
Ø Address Table
Ø Spanning Tree Protocol
Ø Broadcast Storm Filter
Ø IGMP
Ø VLAN Mode (2 modes)
Ø VLAN for CPU (2 VLANs)
Ø Secure IP for Telnet and HTTP
Ø Save Current Settings
Ø Factory Default Settings & Reboot System
Ø Reboot System
Ø Quit
3.3.1 Device Settings
This menu contains system parameters to display and configure the switch to your network.
Menu items are:
Ø Version (RO): display the firmware version of MGSW-004
Ø MAC Address (RO): display the MAC Address of MGSW-004
Ø System Up Time (RO): display the work time of MGSW-004
