from the network, and then reconnected at some time later. If the Network station is connected with one port want
to control the switch, the station’s MAC Address must be the same as one MAC Address

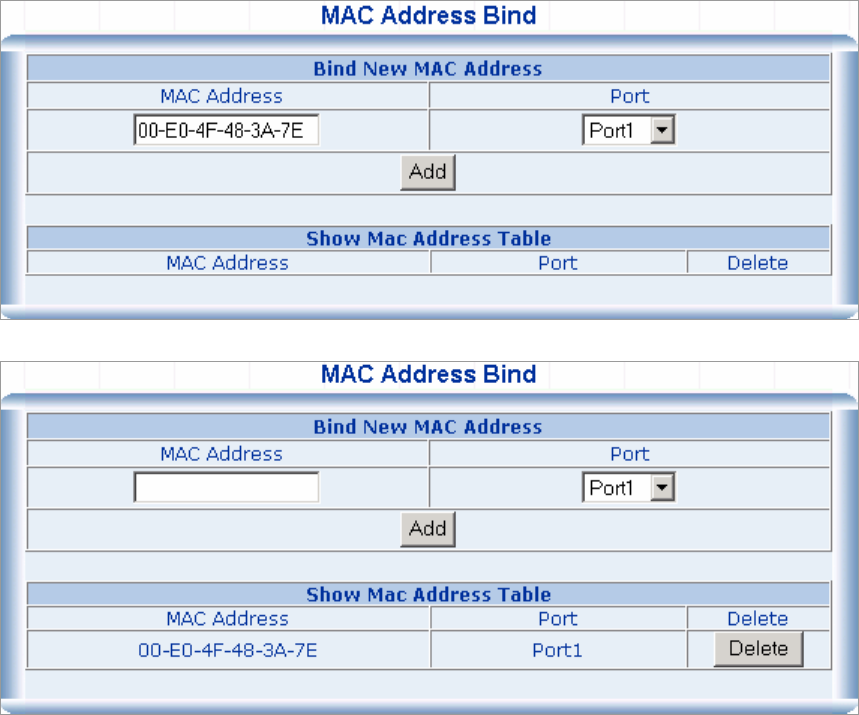

To bind the MAC Address, click on the Security/MAC Address Binding menu button, the main web page then
shows the MAC Address Bind function table.
1. Fill the MAC Address field with MAC address in the format “xx-xx-xx-xx-xx-xx “ and choose the port to bind
the MAC Address in the Port field.
2. Click on the “Add” button.
3. To remove the MAC Address binded by the port. Simply click on the “Delete” button of the MAC Address in the
Show MAC Address Table.
4.7.3 MAC Address Filtering
MAC address filtering allows the switch to drop unwanted traffic. Traffic is filtered based on the destination
addresses.
To filter the MAC Address, click on the Security/MAC Address Filtering menu button, the main web page then
shows the MAC Address Filtering function table.
1. Fill the MAC Address field with MAC address in the format “xx-xx-xx-xx-xx-xx “.
2. Click on the “Add” button to add.
3. To remove the MAC Address filtered by the port. Simply click on the “Delete” button of the MAC Address in the
