Replacing Consumables and Maintenance Kit
36
2

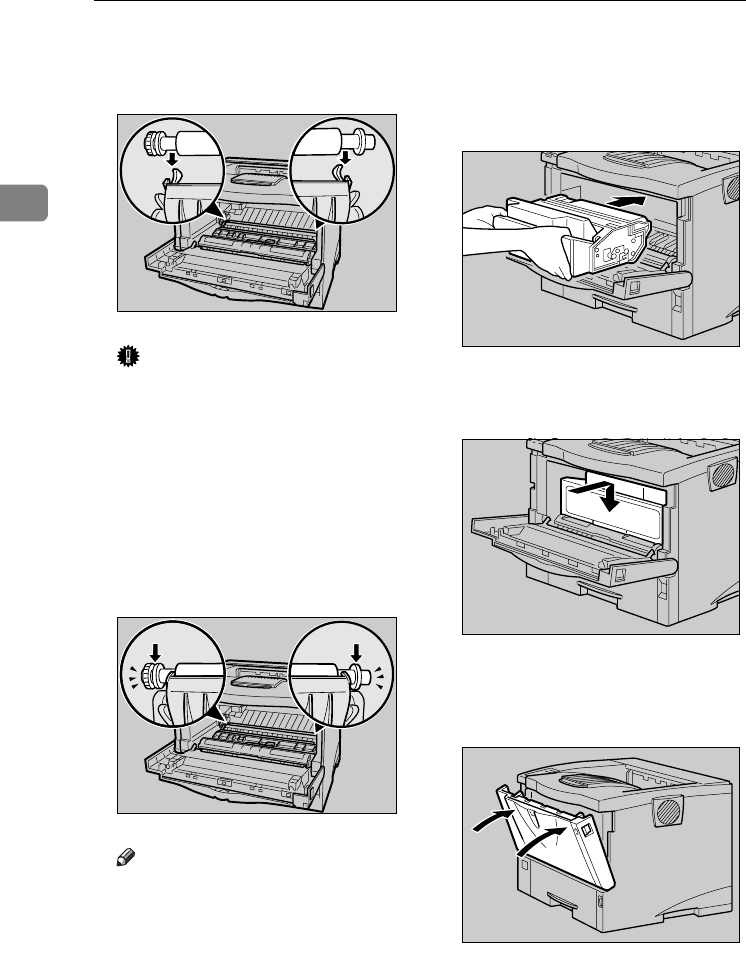

F Insert the new transfer roller on
the socket with the gear of the
roller positioned on the left.
Important
❒ Do not insert the roller on the
back of the socket, or the printer
might be damaged.
❒ Insert the metallic part of the
roller on the socket. If you insert
the sponge part of the roller, the
roller might be damaged.
G Push down the green parts of
both sides of the printer until it
clicks as shown in the illustration.
Note
❒ When the transfer roller is set,
the transfer roller cover will re-
turn to its original position au-
tomatically.
H Take the gloves off.
I Hold the grips of the toner car-
tridge, and then insert it into the
printer until it stops.
J Lower the toner cartridge when it
touches the back.
K Close the front cover by pressing
the left and right side indenta-
tions.
ZKGM220E
ZKGM221E
AGN023S
AGN024S
ZKGH130E
